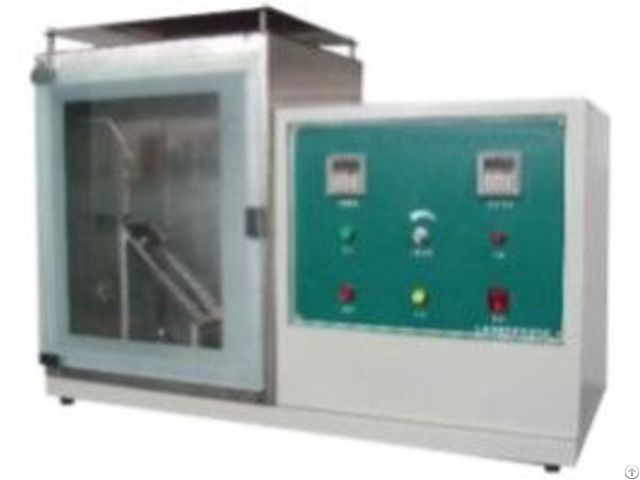

Fabric Flame Retardant Tester - China
price: 1.00 Dollar US$
The instrument is used to measure the intensity and speed of burning of flammable textiles when ignited.
Standards GB/T 14644-2014 Textiles-Burning behaviour-45°test determination of flame spread rate
CFR 1610 Standard for the flammability of clothing textiles Technical Parameters Items Parameters
Burning time range 0 ~ 99.99s; resolution: 0.01s
Ignition time 1s, resolution: 0.01s
Igniter Caliber 41/2 syringe needle
Sample size 150mm × 50mm
Sample clip size Shape -205mm × 76mm; inner frame -130mm × 40mm
The tip of the igniter is 8 mm from the specimen surface
Flame spray the sample from the midpoint to the mark line distance 127mm
Flame height 16mm
Company Contact:
- Posted By: Qinsun Instruments Co., Ltd
- Phone: +862167800179
- Address: No.258 Banting Road, Songjiang District Gu Dai Road, Shanghai, SHANGHIA , Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com
Published date: March 8, 2018
- Business Description: Qinsun Instruments Co., Ltd was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.
Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.
Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.
Our Products:
- multi finger scratch tester
- electronic crockmeter rubbing fastness tester
- double cylinder launder ometer
- color fastness tester of textiles to perspiration
- scorch sublimation tester for color fastness to heat
