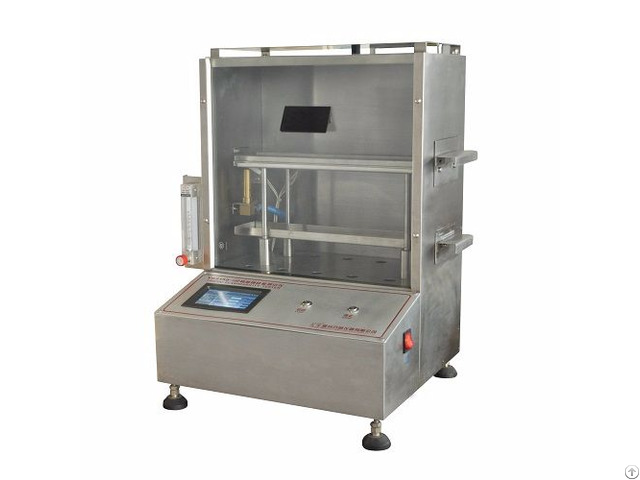

Fabric Flame Retardant Performance Test Machine - China
price: 1.00 Dollar US$
fabric flame retardant performance test machine is mainly used to determine the textile flame, smoldering and carbonization tendencies.
Suitable for flame-retardant woven fabrics, knitted fabrics, coated products, quilted products.
Scope of application:
fabric flame retardant performance test machine is mainly used to determine the textile flame, smoldering and carbonization tendencies.
Suitable for flame-retardant woven fabrics, knitted fabrics, coated products, quilted products.
Main technical indicators:
1 - Timing range 0.1s ~ 999.9s
2 - Can be carried out vertical method, horizontal method, 45 ° A method, 45 ° Appendix A method, small 45 °, quilted products such as the determination of flame retardant properties.
3 - Timing accuracy of 0.1s
4 - Test flame height: adjustable
5 - Burning box outer box size: 650mm × 650mm × 860mm
6 - Burning box inside the box size: 600mm × 640mm × 740mm
7 - Automatic output of exhaust fan power supply AC220V 3A
8 - Power: AC220V ± 10% 50Hz
9 - Power: 40W (excluding exhaust fan)
10 - Net weight: 40Kg Standards :
GB / T5455, FZ / 01028, GB / T14645, GB / T14644, FZ / T81005 and so on.
Features:
1 - Stainless steel test box, surface drawing, with glass observation window;
2 - Stainless steel support frame;
3 - Stainless steel specimen frame;
4 - Flame height adjustable (rotor flowmeter adjustment or burner adjustment);
5 - The use of special aluminum panels;
6 - With imported watches, metal keys;
7 - A variety of different samples can be used interchangeably;
8 - With commissioning dedicated air supply, with special conversion connector;
9 - Inside the box is equipped with high temperature fire protection device tube.
