External Threaded Pot Magnet of NdFeB

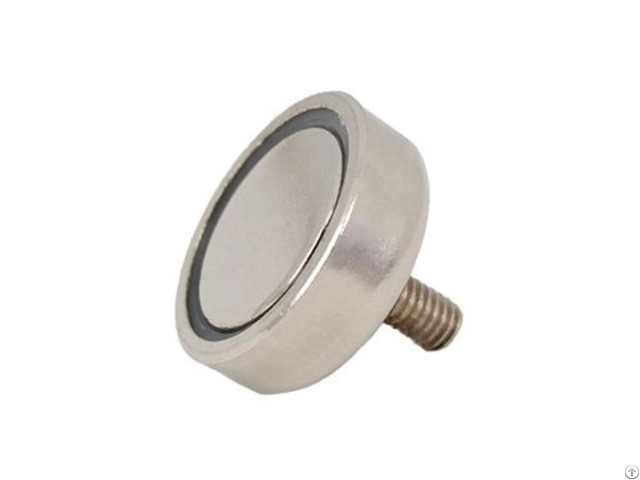

External Threaded Pot Magnet

Horizon have been producing and supplying the pot magnet.

The pot magnet is also called cup magnet, holding magnet, round base magnet, mounting magnet, flat pot magnet, etc.

Thepot magnetconsistsof a cylindricalor ring NdFeB (Neodymium-iron-boron) magnetassembled with a concentric non magnetic ring into a steel pot.

The magnet ismagnetized together with the potto create a holding force that is significantly stronger than an individual magnet, because this pot structure directs and concentratesthe flux from both magnetic poles to one active face.

The pot magnet will retain its magnet force permanently unless working temperature or external magnetic field increases.

The size, shape and magnet material of the pot magnet can adjust to its usage requirements including pull strength, working temperature, etc.

The pot magnet is versatile so that it is appropriate for various industrial applications.

The typical applications are fixture positioning, sign and banner holders, emergency light holders, tool bases, etc.

When considering your selection, please be aware of the following factors: The stated force (holding/gripping) is based on the pot magnet retaining force against a direct pull when offered to a clean ground mild steel surface with a minimum thickness of 6mm.

The smallest gap, even paint or un-ground surface will reduce the holding force significantly.

On a vertical surface the holding force is reduced by approximately 70%.

External Threaded Pot Magnet of NdFeB Advantages over Competitors:

Quality First: genuine Neodymium magnet, magnet size NEVER smaller than requirement

More sizes available to save tooling cost

Standard sizes in stock and available for immediately delivery

Custom-made solutions available upon request

Technical Data:

Part Number D

(mm) M

(mm) H

(mm) h

(mm) Force

(kg) Net Weight

(g) Maximum Operating Temperature

(C)

HM-C10 10 3 12 5 2 2.8 80

HM-C12 12 3 13 5 3 4 80

HM-C16 16 4 13 5 8 7 80

HM-C20 20 4 15 7 15 14 80

HM-C25 25 5 17 8 25 25 80

HM-C32 32 6 18 8 38 40 80

HM-C36 36 8 18 8 43 50 80

HM-C42 42 8 20 9 66 80 80

HM-C48 48 8 24 11.5 88 140 80

HM-C60 60 10 30 15 112 260 80

HM-C75 75 10 34 18 162 475 80

More information please view here.
