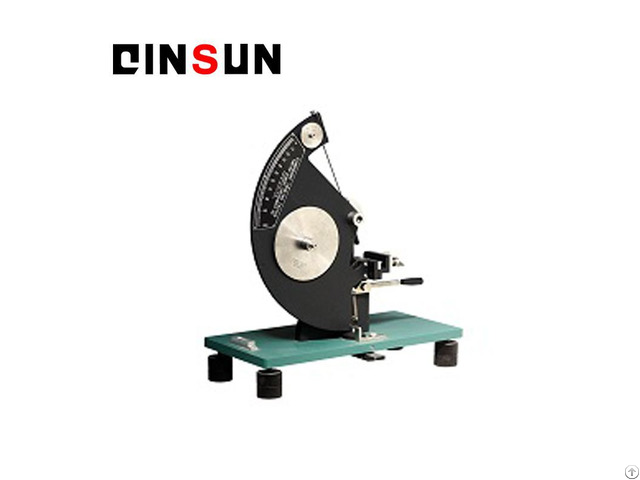

Elmendorf Method Tearing Resistance Test Machine Of Plastic Films - China

elmendorf tearing tester for films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens.

this tearing tester conforms to ISO 6383-1-1983, ISO 6383-2-1983, ISO 1974, ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414, GB/T16578.2-2009, GB/T 455 - Features controlled by computer with automatic and electronic measurement which is convenient for the operation Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively Computer assisted horizontal adjustment system could maintain the instrument optimum status Equipped with pendulums of multiple capacities ​ Tearing Strength Tester is a consistent tool useful to determine the tearing strength of fabrics, plastic films.

Textiles, Plastic film and aluminum plastic composite films, Paper and paperboard.

Standards Textile: GBT3917.1, ASTM D1424, DIN 53862, EN ISO 13937-1, ISO4674-2, ISO 9290, M&SP29, NEXT 17, NFG 07-149

Plastic: ASTM D1922, GB/T11999, ISO6383-2, JISK7128-2, NFT54141

Nonwoven: ASTM D5734, WSP100.1

Paper: APPITAP400, ASTM D689, BS4468, CSAD9, DIN53128, EN21974, GB/T455, ISO1974, JISP8116, PAPTACD9, SCANP11, SNV198482, TAPPIT414, UN1644 Accessories Standard configuration: Host one, Standard pendulum weights (A-D) and calibration weights, LABTest PC software Optional accessories: Pendulum weight E and calibration weight Features ◆ Automatic pendulum weight detection, automatic zeroing ◆ Based on the standard fan pendulum structure and high precision photoelectric coding sensor, the test results are accurate.

◆ Low-power design.

You can use the computer USB port power supply, and you can also use the phone charger power supply.

◆ Large range of design.

Select E pendulum which can be tested to 128N.

◆ Two fixture gap 2.5 ~ 3.5 continuously adjustable.

Blade position is adjustable to meet a variety of standards.

◆ With a digital adjustment of the display backlight system.

◆ Test results can be transferred to the computer through the USB port.

Make the statistics and make the perfect test report, which can also be saved as EXCEL format.
