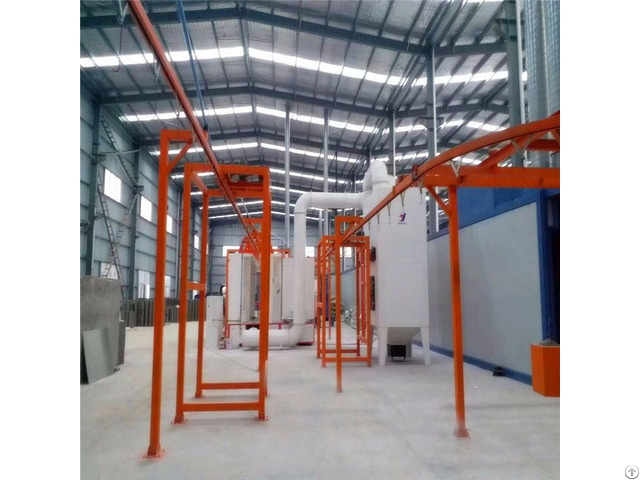

Electrostatic Powder Spraying Booth With Natural Gas Heating Curing Oven System - China

By the Chambers, water board, the water pump line, convulsions equipment, purification equipment, electronic components, etc.

Water spray room is the use of water at the bottom of the plate, vortex rolled plate and baffle plate finish to filter paint mist, the waste gas purifying effect.

Work, including paint mist air in fan under the action of gravity, the overflow tank water, formation water and the surface of the pool right in front of the water, paint mist will encounter water or pool surface adsorption by water, under the secondary impact of vortex volume fell into the water accumulated in the tank.

Without touching the water mist from the lower part of water back into the spray chamber, the spray jet spray irrigation, secondary collect paint mist.

Paint with water spray mist in dehydration indoor from collision and form containing paint fog droplets of water, falling into dehydrated the bottom of the chamber to sink deposited, after the separation of the air by the fan discharge outside.

This part belongs to air emissions, conditional can be mounted to the box or waste gas purification equipment, the waste gas of benzene, toluene, xylene and other harmful substance content processing to GB 16297-1996 national emission standard.

Differences between Spray Paint and Electrostatic Powder Coating: 1 - The effect of Spray Painting is mirror.

The effect of Powder Coating is mostly frosted surface with small holes.

2 - The paint is thinner than the powder.

The paint is about 30 microns in size.

The powder particles are about 60 microns.

3 - The smell of paint is harmful to health.

Small powder pollution, small and environmental impact on workers' health.

4 - Paint is volatile matter, so the Curing temperature in the Curing Heating System is below 150 degrees Celsius.

The temperature of the Powder Spraying workpiece in Curing Oven needs to be between 180 and 220 degrees Celsius.

5 - The same grade of Powder is cheaper than lacquer.

6 - The strength of the powder is better than the ordinary paint.

7 - Powder Spraying can be in place once.

And the powder that falls into the groove in the Spray Room can still be used repeatedly to save cost.

Company Contact:

• Posted By: Hebei Hanna Technology Co.,Ltd

• Phone: +8618633045156

• Address: Zhongshan Road, Shijiazhuang City, Hebei Province, China

• Email:

• Website: https://www.coating-equipment.com/

• Business Description: Hebei Hanna Technology Co., Ltd, China largest powder coating equipment factory，since 1990 .

  From simple manual spraying to automatic powder spraying system.

  Has through CE &ISO9001 standards.

  We are specialized in the development, Design -- production -- installation -- after-sales service for powder coating line.
