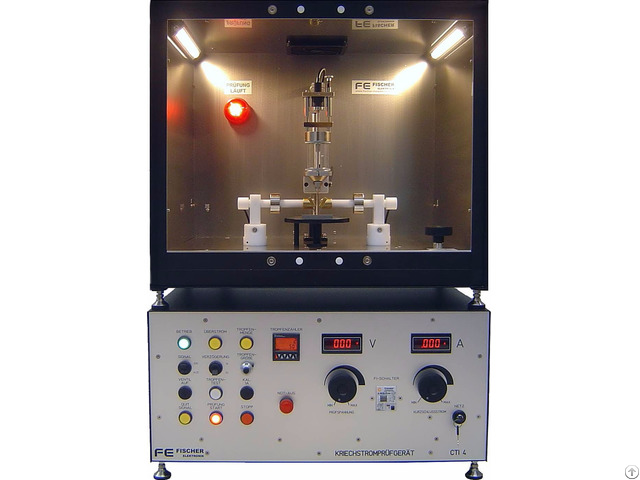

Electric Tracking Index Tester - China
price: 1.00 Dollar US$
The electric tracking index test is performed on a surface of a solid insulating material by applying a voltage to a platinum electrode of a predetermined size (2 mm x 5 mm) and dropping a predetermined volume of conductive liquid (0.1% NH 4 Cl) at a predetermined height (35mm) for 30 seconds, to evaluate the electric leakage resistance performance of the surface of a solid insulating material under the combined influence of an electric field and a wet or contaminated medium.
Tracking index tester rigorously is a professional inspection tester, designed and manufactured based on GB4207, IEC60112 and other standard, to measure the comparative tracking index and proof tracking index in the simulated wet condition, with characteristics of simplicity, accuracy, reliability, practical feature, etc.
Standards
GBT 4207, IEC 60112 (2003), IEC 60745-1, IEC 60335-1, IEC 60598-1, IEC 60884-1 Technical Parameters
1, Electrode material:electrode head - platinum (white gold)
2, Electrode pressure:1.0±0.05N。
3, Electrode distance:4.0mm ± 0.01mm, intersection angel 60°±5。
4, Electrode voltage:100~600V(48~60H Z)adjustable.
When short circuit current is in 1.0 + / - 0.1 A, voltage drop is less than 10%.
5, Drip height:30~40mm, adjustable
6, Drip size:44~55 drops/1cm3, adjustable
7, Drip time:30s±5s。
8, Number of drops:0~9999 drops, adjustable
9, Leakage judgment: when loop current is greater than 0.5A and maintaining for 2 seconds, the relay cuts off the current, indicating sample failed.
10, Test process: test procedures automatic control, independent ventilation.
11, Reference standards:IEC60112 , GB/T4207, GB4706.1
12, Working room volume:0.1m3(0.5 m3 or 0.75m3 customizable)
13, External dimension:630mm(W)×390 mm(D)×750mm(H) Precautions
1 - In the process of operation, personnel should pay attention to personal protection and avoid electrical leakage or contamination of the eyes and mouth by the solution.
2 - Input power AC220 + / -2%.
3 - Please do not open the door when the sample is testing.
After the test is finished or when the experiment fails to produce a fire smoke, open the fan to remove the smoke and then open the chamber door for the operation
4 - The exhaust pipe should be out of the window
5 - The power supply is applied to the three-pin socket with ground wire to ensure the reliable grounding.
6 - Before the test, it is necessary to confirm whether the equipment is in the metering validity period, or the test is not allowed.
