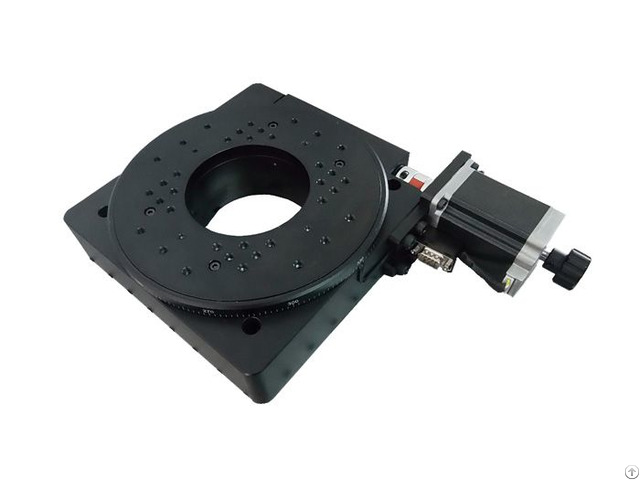

Electric Rotating Platform Motorized Rotation Stage Px110 200 - China

Electric Rotating Platform, Motorized Rotation Stage, lab Rotation Stage PX110-200

Motorized Rotation Stage

Motorized Stage

SPECIFICATION:

High Precision Motorized Rotation Stages using, New construction, new technology;the key index has up to the international level of the similar products by strictly inspection .

This series products are used to laser precision processing, three dimensional scanning measurment system and so on .

If you need a zero switch, please let us know in advance.

1 Item Number: PX110-200

2 Rotation Range: 360° of Continuous Rotation

3 Diameter of Platform: Ø200mm

4 Drive Mechanism: Worm Gear

5 Worm Gear Ratio: 180 : 1or 90：1or 45: 1(Choose one of the three)

6 Stepper Motor (1.8°): 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle

7 Material – Finish: Aluminum Alloy - Black-Anodized

8 Load Capacity: 55Kgs

9 Weight: 9.0kgs

Accuracy Specifications

1 Design Resolution: 0.01°=36”, Non-MS Driver; 0.0005°=1.8”, 20MS Driver

2 Rotational Velocity (Max): 25°/sec

3 Repeatability: 0.005°=18”

4 Absolute On-Axis Accuracy: 0.01°=36”

5 Run-Out of Top Plate: 15μm

6 Backlash: 0.005°=18”

7 Eccentricity: 20μm

8 Lost Motion: 0.005°=18″

9 Parallelization: 100μm

Worm and worm wheel has adopted durable to friction material, high reliable accuracy of rotation .



High precision, ultra steel axises of importing, achieve high precision, high load stable motion.

Outer circle has scale, interface, convenience for signal’s output.

Standard stepper motor and DB9 interface, choose to controller flexibility, We also can provide fully customized motion systems.



Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily.

PRODUCT DETAILS:

ADVANTAGE:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets.

We have a group of experienced high-level processing technicians.

Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
