Electric Chain Hoist Cd Md Type - China

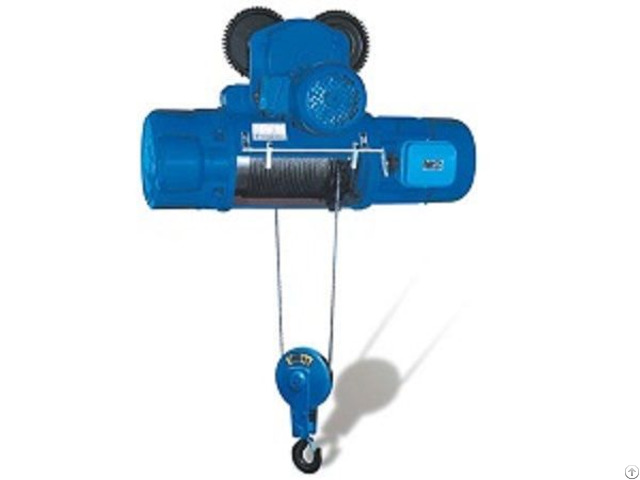

Electric Chain Hoist CD MD TYPE, Small Size Light Weight Electric Wire, Single Speed Electric Wire Rope Hoist

The CD1/MD1 series electric wire rope hoist is a kind of small size lifting equipment developed by ZOHO using up to the minute production technology and material technology as well as strict design standard.

All products of this series electric hoisting equipment employ integrated modular design, thus ensuring easy installation and maintenance.

In addition, they can satisfy the customers who require faster lifting speed and more precise hoisting location.

Features

Compact structure, small size and light weight can make this series electric power wire rope hoist more competitive.

Integrated modular design makes installation and maintenance easier.

This series electric wire rope hoist can be used with single girder crane, gantry crane and cantilever crane for various lifting works.

The MD1 series boasts adjustable double-speed that can meet precise lifting requirement.

Model 0.25-3D 0.25-6D 0.25-9D 0.5-6D 0.5-9D 0.5-12D 1-6D 1-9D

Capacity T 0.25 0.5 1

Lifting Height M 3 6 9 6 9 12 6 9

Lifting Speed M/MIN 8/0.8 8/0.8 8/0.8 Moving Speed M/MIN 20 20(30) 20(30)

Wire Rope Diameter MM 3.6 4.7 7.7 Size 6×19 6×37 6×37+1 Length M 7.5 13.5 19.5 14.43 20.43 26.43 14.65 20.65

I-Beam I-Beam Size 10-20b 16-28c Min Curvature radius M 0.8 1.5 1.5

Rated Voltage Three Phase AC 380V 50Hz

Work Duty S1 FC=25%

Mating Cycles Times 240 Motor Power KW 0.4 0.8 1.5 Speed R/MIN 1380 Current A 1.25 2.4 4.3

Moving Motor Power KW 0.06 0.2 Speed R/MIN 1400 1380 Current A 0.3 0.72
