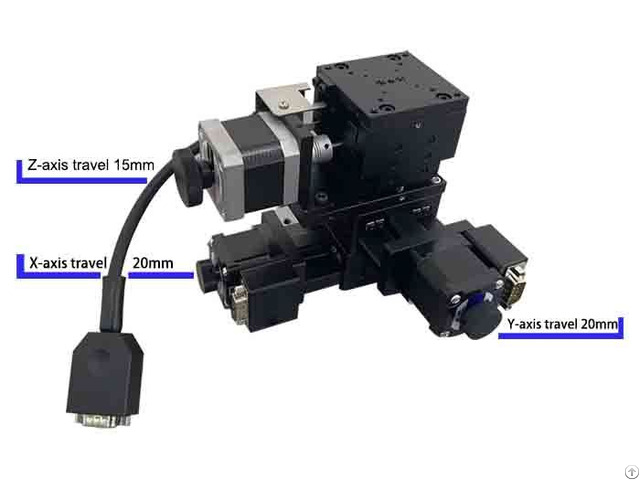

Electric 3d Station Xyz Mini Travel 20mm - China

Model number PT-GD60

Table size 60×60mm

Lifting stroke 10mm

Transmission mode 1/2 wedge, ground screw, pitch 1mm

Guide form Precision cross roller guide

Main material Aluminum (6061)

Main material surface treatment Black anodizing

Instrument weight 0.7Kg

Central load 4Kg

Resolution 8 subdivision/pacing 0.000625mm/0.005mm

speed 5mm/sec

Unidirectional positioning accuracy ≤50um

Repeated positioning accuracy ≤20um

Return clearance ≤10um

Surface runout ≤30um

Motor type Double out shaft 20 step motor

Motor stepping Angle 1.8°

Rated working current 1A

Supply voltage 24V±10%

splice DB9 pin connector

Limit switch Photoelectric switch
