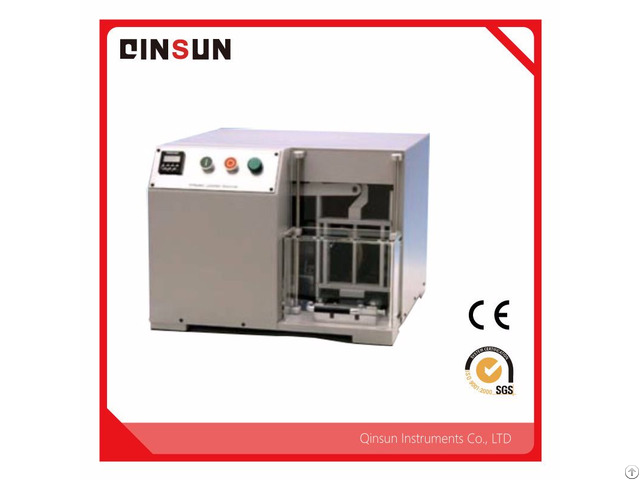

Dynamic Loading Machine - China

Introduction The dynamic loading machine gives information on the thickness loss of textile floor coverings, by simulation two of the main actions of walking: compression and shearing effect at the edge of the shoe according to ISO 2094 - The weight has two rectangular steel feet, 51mm by 6.5mm and 9.5mm deep, attached to its underside, 38.1mm apart.

By means of a pivoted arm, a cam raises the weight and then allows it to fall freely from a controlled height onto the carpet specimen every five seconds.

The steel plate to which the specimen is clamped, is slowly and continuously traversed in such a way that there is 3.2mm movement between each drop of the weight.

There is thus a half-overlap by the steel feet at each impact.

A complete traverse forward and back is completed after every 25 impacts, producing a uniformly compressed area 50mm wide by 90mm long.

Standards ISO 2094 Textile floor coverings - Determination of thickness loss under dynamic loading.

Technical Parameters Items Parameters

Dimension 500(W)x 500(D)x 370(H)mm

Power consumption 250W

Steel feet weight 51mmx 6.5mm, 6.5mm thickness Features · Stainless steel structure, paint spray processing, good anti-corrosion, long service life.

· Easy operation.

The weight with two rectangular steel feet is repetitively dropped off to impact the floor coverings for periodic dynamic loading test.

· Good stability with minor deviation on test results

· Stainless steel plate to which the specimen is clamped.
