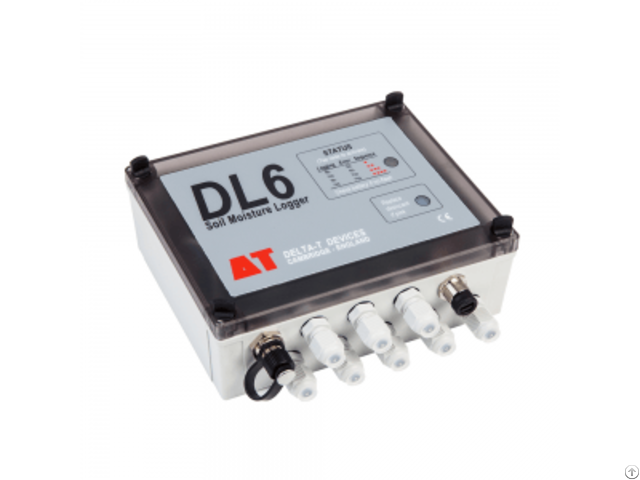

Dl6 Soil Moisture Data Logger - China
price: contact company for price
The DL6 is a dedicated data logger optimised for use with Delta-T soil moisture sensors.
It can be used with combinations of ThetaProbes, SM150T Soil Moisture Sensors and Profile Probes, and also accepts rain gauge and soil temperature probe inputs.
Up to 16000 readings can be stored in memory.
The DL6 can record data from: 6 soil water content sensors (or other analog voltages)
1 temperature sensor
1 pulse counter (e.g. rainfall)
Specification
Input connections 6 voltage channels
1 temperature
1 counter
Control outputs 1 relay (1 A)
Readings stored 16, 000
Recording rate 1 second to 24 hours
Configuration DeltaLINK
Communication options RS232, USB [1] or modem
Sensor excitation 1 switched logger power
Power 6 AA alkaline batteries
Battery life (dependent on usage) >230k readings, lasting >400 days
Enclosure rating IP67
Temperature range -10 to +50°C
Display –
Size 180 x 160 x 70mm
Typical application Monitoring soil moisture profiles
Controlling irrigation Sensor compatibility (maximum number of sensors that could be connected
ML3 ✓ (1) with temp (5) excl.
temp
SM150T ✓ (1) with temp (5) excl.
temp
PR2 ✓ (1)
PR2 SDI-12 –
WET Sensor –
EQ3 ✓ (1) with temp (5) excl.
temp
Temperature ✓(1)
Tensiometers –
Counters or Events ✓(1)
Relay Output ✓(1)
