Dl2e Data Logger - China
price: contact company for price

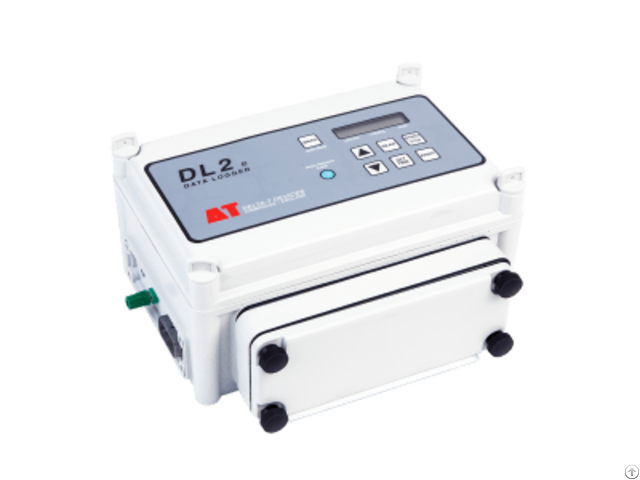

The DL2e Data Logger is a versatile data logger, well suited to remote site and laboratory applications.
The DL2e system is easy to use and supports a wide choice of sensors, data logging intervals, data collection and analysis facilities.
Specification Input connections 15 analog channels expandable to 30, 45, or 60
2 counters
Control outputs 2 relays (1A)
Readings stored 128, 000
Recording rate 1 second to 24 hours
Configuration Ls2Win
Communication options RS232, USB [1]
Sensor excitation 2 relay switched logger or external power
Power 6 AA alkaline batteries or external power 7-15V
Battery life (dependent on usage) ~ 6 months
Enclosure rating IP65
Temperature range -20 to +60°C
Display 2 line x 16 character
Size 280 x 220 x 140mm
Typical applications General data logging for moderate to complex systems Sensor compatibility (maximum number of sensors that could be connected [2]
ML3 ✓ (30) with temp / (60) without temp
SM150T ✓ (30) with temp / (60) without temp
PR2 ✓ (10 PR2/6) (15 PR2/4)
PR2 SDI-12 –
WET Sensor –
EQ3 ✓(30) with temp / (60) without temp
Temperature ✓(60)
Tensiometers ✓(60), requires TVB1s
Counters or Events ✓(2)
Relay Output ✓(2)
Company Contact:
- Posted By: Channel Tech scientific Instruments
- Phone: 15611257114
- Address: Suite 6B13 Huajie Plaza, 13 Dazhongsi, Haidian District, Beijing , BeiJing , China
- Email:
- Website: https://www.channeleco.com
Published date: April 11, 2019
- Business Description: For the purpose of introduction and promotion of global advanced instrumentation and technology in the fields of terrestrial ecology, aquatic ecology and life science
