Digital Rail Corrugation Wear Gauge For Railway Measurement - China
price: 950.00 Dollar US$

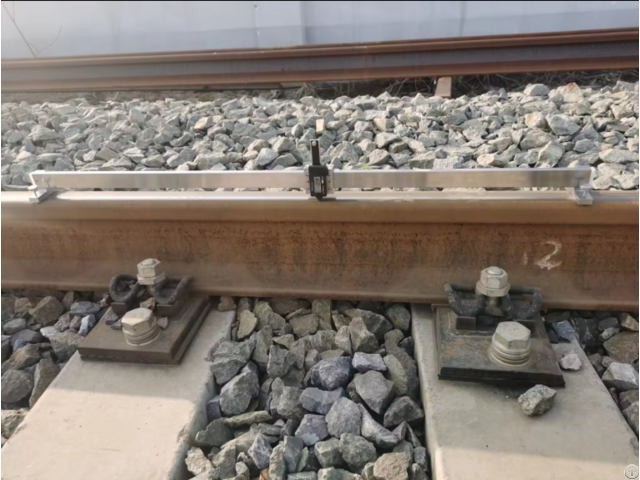

Digital Rail Corrugation Wear Gauge
Digital corrugation Wear Gauge is a direct reading measuring tool which is used straight vertical measurement method.
It is mainly used for measuring rail top surface and side surface corrugation wear value.
BENEFITS It’s simple in operation, compact in size, easy to carry, high precision in measurement, reliable in installation and positioning, simple in use Convenient;Easy to site construction, ensure the quality of work.
Material Stainless Steel
Dimensions (L x W x H) (mm) 1000*20*50mm
Brand Name Linkage
Product name Digital rail corrugation wear gauge ruler
Usage rail corrugation wear gauge for rail measurement
Quality Control: ISO9001
Vertical measure range -8 - +25mm
Repeat error 0.02mm
Horizontal measure range 1000mm
Accuracy ±0.05mm
Resolution 0.01mm
Certificate CE
Standard CRCC
Company Contact:
- Posted By: Wuhan linkage track equipment co
- Phone: +8615671313697
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: March 27, 2024
