Desktop Muffle Furnace Manufacturer - China

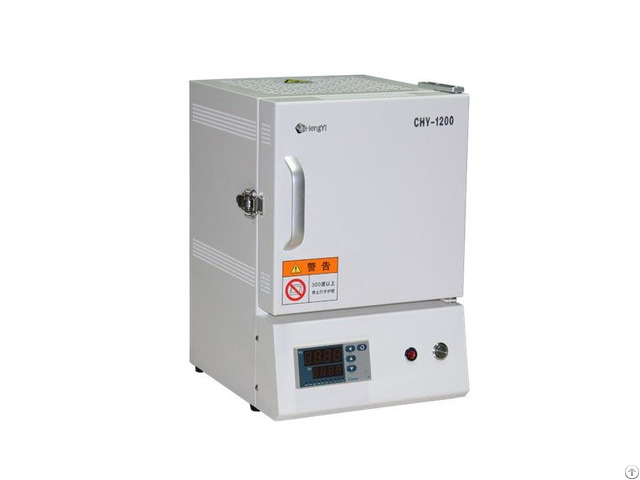

CHY-M1210 Labooratory 1200c Muffle Furnace with 1L Capacity( 100*100*100mm) Desktop Muffle Furnace Manufacturer 1.100*100*100mm chamber dimension

2 - high quality ceramic fiber chamber

3 - PID Programmable controller

4 - Heavy duty double layer structure

5 - Made by Henan Chengyi Muffle Furnace APPLICATION

1 - laboratory heat thermal processing cement, building materials industry etc

2 - Pharmaceutical medicines inspection, preteatment of medical sample

3 - Analytical Chemistry Industry: water analysis and environmental analysis

4 - Analysis of coal quality, determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis lab muffle furnace PARAMETERS

1 Product Name 1200 Degree Mini Muffle Furnace

2 Model M1210

3 Furnace Door side open type

4 Display Model Highlight LED display

5 Maximum Temperature 1150℃

6 Working Temperature ≤1100℃

7 Heating rate ≤20℃/min Suggest: 10℃/min

8 Heating zones Single heating zone

9 Hearth dimensions 100mm×100mm×100mm

10 Hearth volume 1L

11 Control mode Intelligent PID auto control

12 Temperature Accuracy ±1℃

13 Temperature curve 30 segments programmable

14 Over heat alarm Have

15 Overcurrent protection Have

16 Thermocouple Failure Protection Have

17 Temperature measure element K-type thermocouple

18 Heating Element Fe-Cr-Al Alloy doped by Mo

19 Hearth Material high purity alumina fiber

20 After-sales service 12 month warranty, durable maintaince and repair support

21 Power Supply 220V 50HZ

22 Rated power 0.75kw

23 Overall dimensions 400×400×450 (mm )

24 Packing 3-ply wooden case

25 Accessories plate, protective glove, crucible hook, crucible tongs, user manual.
