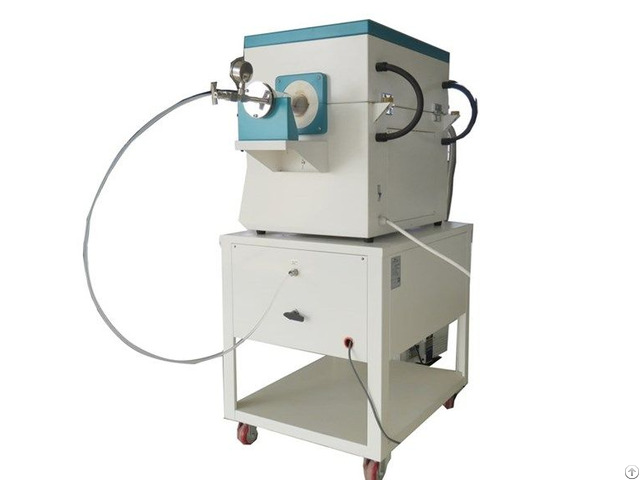

CHY-T1280A-3Z4C Laboratory CVD Tube Furnace with O.

D80*1000mm Quartz Tube Laboratory CVD Tube Furnace CVD machine price 1 - O.

D80*1000mm high purity quartz tube

2 - High quality ceramic fiber chamber

3 - PID Programmable controller

4 - Three gas way mass flow controller with precision gas flow controller

5 - Two stage Vacuum Pump

5 - Made by Henan Chengyi CHENGYI-CVD System APPLICATION

1 - Laboratory heat thermal processing

2 - High Vacuum Sintering Heating Annealing Brazing

3 - Laboratory Thin Film Preparation, Nano tube growthing

4 - Laboratory CVD system, graphene growthing, preparation.

PRODUCT PARAMETERS

Product Name 1200 degree CVD Furnace

Modle No.

CHY-T1280A-3Z4C

Heating zones Single heating zone

Heating zone length 400mm

Constant temperature zone length 200mm

Tube Material high purity quartz tube

Tube diameter O.

D80*I.

D74*1000mm Quartz Tube

Tube Length 1000mm, 750mm, 1000mm, 1200mm as enquiry

Thermcouple K type

Maximum heating temper 1150 dgree

Heating rate 20c/min, adjustable suggestion 10 degree/min

Heating element Fe-Co-Al by Mo alloy

Sealing Method stainless steel vacuum flange

Vacuum Air-tightness 9.8×10-4Pa

Temperature Accuracy ±1℃

Control Mode Intelligent PID programmable Control, 30 steps sintering curve restore

Mass Flow Controller 3 gas way mass flow controller

Flowmeter Core 304 stainless steel

Measure Accuracy +/- 1.0% F.

S

Pressure Range -0.1~0.15MPa

A way gas range 0~100SCCM

B way gas range 0~200SCCM

C way gas range 0~500SCCM

Vacuum Pump 4C

Power Supply AC220V 50Hz
