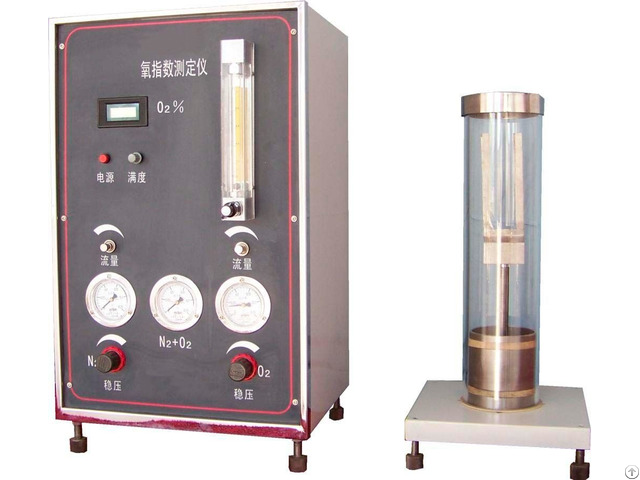

Critical Oxygen Index Test Apparatus - China

The Oxygen Index (LOI) fire test is perhaps the most economical and precise quality control test for combustible materials.

Its ease of use together with high levels of precision has made this technique a primary characterization and quality control tool for the plastic materials and electric cable industries.

It is often used in materials specifications and material/product data sheets and included in some US Mil Specs.

The test assesses the minimum percentage of oxygen in the test atmosphere that is required to marginally support combustion.

Technical Parameter:

Main unit：360 x 300 x 240 h (mm)

Colum unit：200 x 300 x 50 h (mm)

Colum：Type A, Ø100 x 450 h (mm)

Overall dimension：360 x 300 x 740 h (mm)

Net weight：13 kg

Gross weight：19kg

Power supply：230 V 50Hz, single phase

Gas：oxygen, nitrogen, propane, dry industrial air 2 bar Standards

ASTM D 2863 Standard Test Method for Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index)

ISO 4589-2 Plastics-Determination of burning behaviour by oxygen index –Part 2: Ambient-temperature test

CEI 20-22/4 Tests on electric cables under fire conditions-Part 3: Tests on bunched wires or cables Configuration include：

Support for self supporting specimens

Support for non-self supporting specimens

Support for thin specimens

Column Pyrex glass with cap

Burner for the ignition of the sample with manual regulator and gas hose

Clamp for specimen positioning

Determination of the percentage of oxygen through a paramagnetic transducer (accuracy O2 <0.1% )

Direct reading on color display 3.2" (% Oxygen, Flow, Air)

Automatic flow through Mass flow

Automatic mixing oxygen / nitrogen

Management of equipment Microprocessor

Management mixture by addition of air to more economic measures with high concentration oxygen

Automatic calibration (0 and 100%)

Distributor flow inside the column

USB output to connecting PC

Optional: Software testing report data, easy to use, customize your testing procedures and final report.
