Countersunk Hole Pot Magnet Of Ndfeb - China

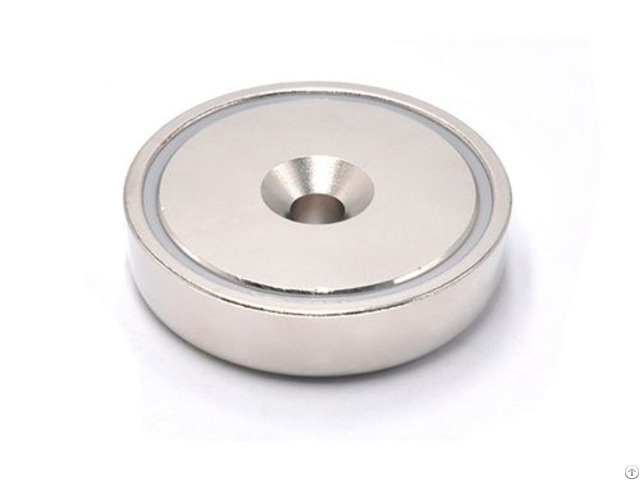

Countersunk Hole Pot Magnet of NdFeB

Countersunk cup magnet

Countersunk holding magnet

Countersunk round base magnet

Horizon have been producing and supplying the pot magnet.

The pot magnet is also called cup magnet, holding magnet, round base magnet, mounting magnet, flat pot magnet, etc.

Thepot magnetconsistsof a cylindricalor ring NdFeB (Neodymium-iron-boron) magnetassembled with a concentric non magnetic ring into a steel pot.

The magnet ismagnetized together with the potto create a holding force that is significantly stronger than an individual magnet, because this pot structure directs and concentratesthe flux from both magnetic poles to one active face.

The pot magnet will retain its magnet force permanently unless working temperature or external magnetic field increases.

The size, shape and magnet material of the pot magnet can adjust to its usage requirements including pull strength, working temperature, etc.

The pot magnet is versatile so that it is appropriate for various industrial applications.

The typical applications are fixture positioning, sign and banner holders, emergency light holders, tool bases, etc.

When considering your selection, please be aware of the following factors: The stated force (holding/gripping) is based on the pot magnet retaining force against a direct pull when offered to a clean ground mild steel surface with a minimum thickness of 6mm.

The smallest gap, even paint or un-ground surface will reduce the holding force significantly.

On a vertical surface the holding force is reduced by approximately 70%.

Advantages over Competitors:

Quality First: genuine Neodymium magnet, magnet size NEVER smaller than requirement

More sizes available to save tooling cost

Standard sizes in stock and available for immediately delivery

Custom-made solutions available upon request

Technical Data:

Part Number D

(mm) d1

(mm) d2

(mm) H

(mm) Force

(kg) Net Weight

(g) Maximum Operating Temperature

(C)

HM-A16 16 3.5 6.5 5.0 6 5.5 80

HM-A20 20 4.5 8.5 7.0 11 12 80

HM-A25 25 5.5 10.5 8.0 20 21 80

HM-A32 32 5.5 10.5 8.0 32 37 80

HM-A36 36 6.5 12.0 8.0 42 45 80

HM-A42 42 6.5 12.0 9.0 66 72 80

HM-A48 48 8.5 16.0 11.5 80 125 80

HM-A60 60 8.5 16.0 15.0 112 250 80

HM-A75 75 10.5 19.0 18.0 162 465 80

More information please view here.
