Compact Rotary Tube Furnace - China

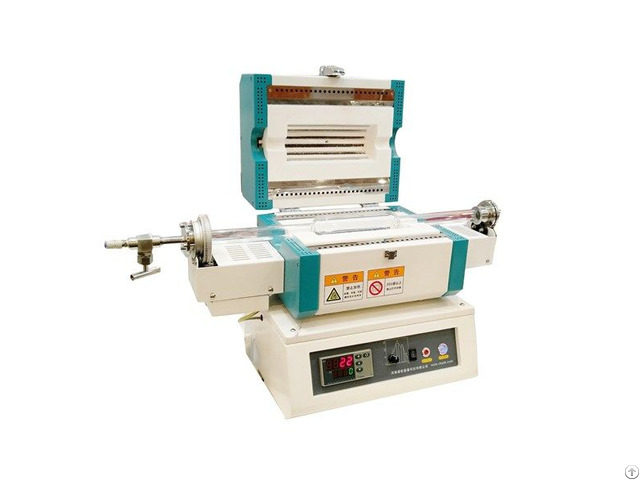

CHY-R1250 Compact Electric Revolve Tube Furnace with 30 segment Controller Compact Rotary Tube Furnace Manufacturer 1 - O.

D50*600 high purity quartz tube

2 - high quality ceramic fiber chamber

3 - PID Programmable controller

4 - Heavy duty double layer structure

5 - Made by Henan Chengyi Rotary Tube Furnace APPLICATION

1 - Laboratory heat thermal processing

2 - High Vacuum Sintering Heating Annealing Brazing

3 - Laboratory Thin Film Preparation, Nano tube growthing

4 - Laboratory CVD system, graphene growthing, preparation.

Electric Revolve Tube Furnace PARAMETERS

Name Mini Revolve Tube Furnace

Model CHY-R1250

Hearth Material Imported alumina fiber

Heating Element Fe-Cr-Al-Mo wire (OCr27Al7Mo2)

Maximum Temperature 1200℃

Working Temperature ≤1150℃

Heating rate ≤20℃/min(Suggest: 10â„ ƒ/min)

Heating zone length 200mm

Constant temperature zone length 80mm

Tube diameter high purity quartz Φ50*600mm

Rotating angle 0-360° adjustable

Sealing Method stainless steel vacuum flange

Vacuum Air-tightness 9.8×10-4Pa

Control mode Intelligent PID auto control with over-current protection, overheating and thermocouple alarm

Temperature Accuracy ±1℃

Power Supply 220V 50Hz

Rated power 1.2KW

Certification CE certification

Accessories quartz tube, vacuum flange, tube block, o-ring seal, protective glove, crucible hook, quartz boat, user manual.

Overall dimensions 380×320×430 mm

Net Weight 25kg
