Color Matching Box - China

The consistency of the light sources in all Qinsun Colour Control Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.

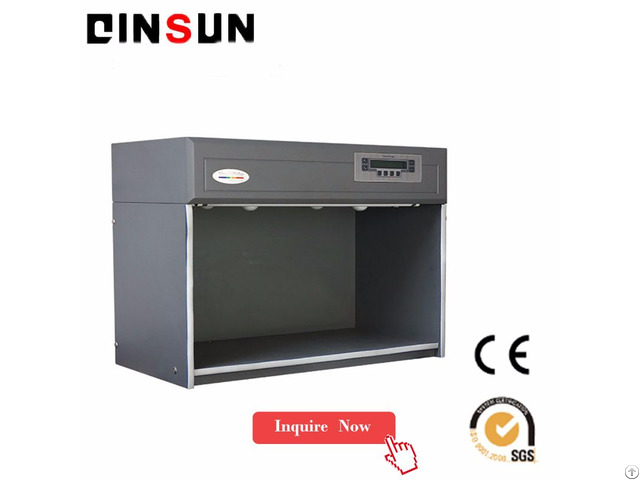

The Qinsun Color Assessment Cabinet is the smallest Light Box in our range and correspondingly is ideal for smaller product.

It should also be considered for offices and production areas where space is at a premium.

The smaller size is also reflected in the price.

Testing Standards:

ASTM D1729, SAE J361, Tappi 7515, BS 950 Part A, AS 1580.6001.1 Product Information:

The Qinsun Color Assessment Cabinet can accommodate up to 4 light sources.

The light sources can be specified by you, to meet your own specific needs and requirements.

A typical cabinet includes UV and F with a choice of two other light sources - usually D65 and one 'point of sale' light source such as 840, 830 or Cool White.

If required, A or H can be supplied instead of F.

You can stipulate the voltage you require and can also ask for the cabinet to be fitted with a Diffuser and or Dimmers(dependent upon lamp options you select).

The cabinets are normally supplied painted with a neutral matt grey -Munsell N5, but it can also be supplied with alternatives of paint colours, Munsell N7or Ref G5574 if required to comply with a particular customer specification.

Technical Parameters:

Overall dimension: 420mm*710mm*545mm(L×W×H )

Viewing area dimension: 380mm × 680mm × 335mm(L×W×H)

Weight: 25kg

Power: 220V/50Hz

Light source: 1 - D65--Artificial Daylight, Color temperature: 6500K, Power: 18W

2 - TL84/P15--Europe, Japan, China store light source, Color temperature: 4000K, Power: 18W

3 - A--Incandescent lamp, household light source, Color temperature: 2856K, Power: 35W

4 - H--Tungsten halogen lamp, household light source, Color temperature: 2300K, Power: 75W

5 - UV--Ultra-Violet, Color temperature: 3000K, Power: 18W Optional Configuration:

We also have a selection of accessories specifically designed for our CAC cabinet range including Benches, Workstations and Cupboards.

Tables, both Tilting and Fixed Angle, are also available.
