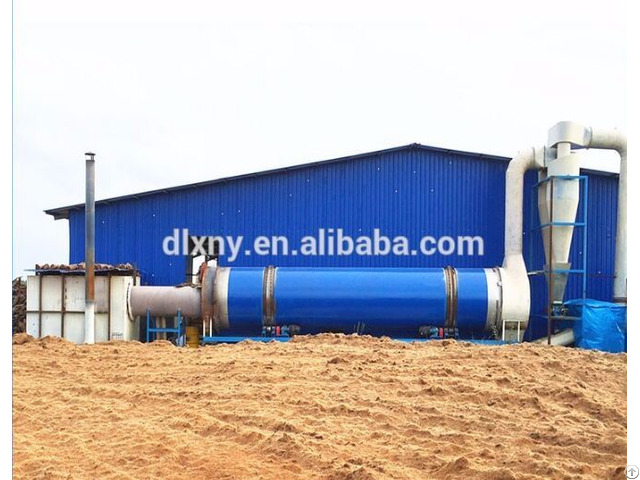

Coir Fiber Drying Process Production Line - China

Dingli Coir Fiber Production Line Introduction:

Product Name: Coir Fiber Production Line

Producer: Zhengzhou Dingli New Energy Technology Co., Ltd Model No: DLXG1620

Voltage(v): 380

Installation Power(kw): 7.7

Input Capacity (t/d): 9-13

Output Capacity (t/d): 8-11

Wet Materials (%): 25-40%

Dry Materials (%): 15-18%

Temperature (℃): 100-180℃

Raw Material: Coconut Coir, Coconut Fiber, Coconut bran, Coconut husk, Palm silk, Palm fruit bunches

Usage: Coconut brick, Mattress, Biomass fuels, Culture medium

Weight(kg): 9500

Plant area(m): 6m*30m

DingLi Drying Advantages

compared with natural drying: 1 - Reduce labor intensity and labor cost;

2 - Increase drying efficiency (natural drying: about 10 days, DingLi dryer: about 40 minutes)

3 - Uniform drying, beautiful appearance, golden color, stable quality; (natural drying are easily influenced by weather changes)

4 - Increase the washing process, make sure the cleanliness and drying effect of fibers.

Matching Products: heat source, heat exchangers, feeding machine, rotary drum, discharging machine, circulating fan, residue cleaning systems, and power distribution cabinets.

Dingli Coir Fiber Production Line Features:

1 - Specific design and manufacture for silk fiber materials.

Unique structure, low energy consumption and high thermal efficiency.

2 - Safe heat exchanging mode.

The dried silk fibers keep same color, strength and flexibility.

3 - Frequency conversion control & automatic temperature control.

Flexible set of operating parameters based on the required drying effect .

4 - Unique residue cleaning system.

The wrapped residue in silk fiber is cleaned in the drying process.

5 - Modular design and manufacture, solid structure, easy installation, low maintenance costs and long service life .

6 - As a whole production line, the dryer can be used together with palm fiber extraction machine, and screening machine.

Company Contact:

• Posted By: Zhengzhou Dingli New Energy Technology Co., Ltd

• Phone: 15670626070

• Address: No.12 Hongye Road HI-TECH Development Zone, Zhengzhou,China, Zhengzhou , Henan , China

• Email:

• Website: http://www.dlbio-dryer.com/

• Business Description: Founded in 2003, Zhengzhou Dingli is a enterprise with 200 employees committed to enhancing client productively, Dingli's all machines are designed, produced, assembled and tested in accordance with the standards of ISO9001: 2001 and CE.

  We have succeeded in researching and supplying complete energy source plant solutions with the following machine: drying machine, organic fertilizer production line, pellet machine, briquette machine, charcoal machine, crusher, etc.
