Co2 Laser Marking Machine For Plastic Drink Bottle - China

Product Description

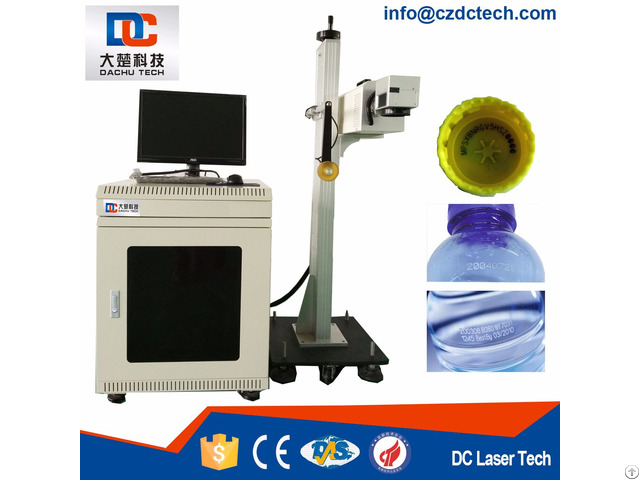

DC-E-30BW laser marking machine adopts the international advanced 30W pulsed lasers, with imported high-precision, high-speed optical scanner system and the focusing system.

Machine fully enclosed design, the natural air-cooled, red indicates positioning, completely main machine power and control part of the highly integrated, so that installation and operation is very simple and free, completely done, "fool" mode of operation.

Parts of DC-E-30BW laser marking machine

Marking head, Laser box, Laser marking control system, Touch screen, etc.

No.

1 Laser Source

Using the most advanced laser source, the average using life time can up 100, 000 hours.

Typical power stability is <2% over 4-8 hours under stable environmental conditions (± 2°C).

No.

2 Galvo scanning system

Digital temperature control, diminutive volume, deliver high dynamics along with the best price/performance ratio.

impresses with further improved dynamics and precision.

No.

3 Laser Marking Controller

Cleaner and safer, with multiple ports, light and compact, this touch panel works smoothly and stable.

This marking controller improves at least 30% in efficiency and precision.

No.

4 Laser marking board

With USB interface, physical DSP processor and developed with dual-cache architecture.

Powerful features are widely used in dynamic mark on the fly, rotary axis mark and flow operations, support digital / analog galvanometer control and XY Table control.

Suitable for high-end laser marking and development.

No.

5 Scan Lens

All lens adopt imported ZnSe materials.

On the basis of ensuring marking precision, this scan lens have a longer span life and dramatically reduce the trouble of assembling and debugging.

No.

6 Beam Expander

Selecting the right beam expander must fit the size of scan head aperture.

Composed of one convex and one concave lens, appropriate lens diameter, beam expander lower the laser beam loss and machine consumption, to get the most precise marking.

No.

7 Hi-speed Encoder

Outer diameter 50mm, shaft size 8mm, differential signal mode, resolution 3600P/R, 5V supply voltage.

No.

8 Lifter

Solid aluminum structure, unique black.

The size of the baseplate can be customized.

With double scale on the lifter surface, convenient to measure adjust deviation.

Black handle and slider fixed design to prevent sliding and improve precision.

Technical Parameters:

Laser working material:

Yb-doed fiber

Laser wavelength:

10640nm

Laser power:

30W

Modulation frequency:

20 kHz -180 kHz

Scanning speed:

0 -7000 mm/s

Marking area:

110mmX110mm (Optional)

Making depth:

0.01 mm -0.2mm(depend on material)

Marking line width:

0.01 mm -0.1mm

Minimum character:

0.2mm

Positioning accuracy:

0.01mm

Input power:

＜200W

Cooling:

air

Power Supply:

AC220V±10%, 50Hz

Continuous working time:

24H

Main Parts List of DC-E-30BW Laser marking machine

No.

MAIN COMPONENTS

SPECIFICATIONS

PLACE OF ORIGIN

1

LASER

30W CO2 LASER

CHINA MAINLAND

/ AMERICAN

2

SCANNING GALVANOMETER

DIGITAL TEMPERATURE CONTROL

CHINA MAINLAND

/ GERMAN

3

TOUCH SCREEN

10' LC

TAIWAN, CHINA

4

FILED LENS

F=254MM MARKING AREA OPTIONAL

SINGAPORE

5

RED LIGHT POSITIONING SYSTEM

650N

CHINA MAINLAND

6

MARKING SOFTWARE

FREE OF INSTALLATION

CHINA MAINLAND

7

ENCODER

ZSP3806-003G

CHINA MAINLAND

8

PORTABLE SUPPORT

TWO-DIMENSIONAL MOVABLE

CHINA MAINLAND
