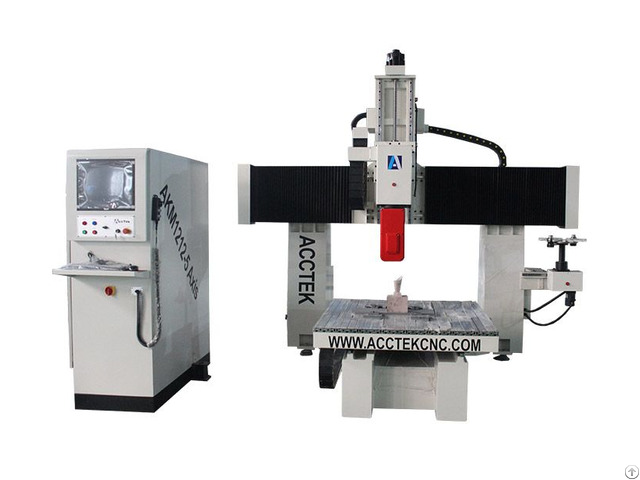

Cnc Router Machine 5 Axis For Wood Stone Metal - China

Condition:

New

Range of Spindle Speed(r.p.m):

6000 - 24000 rpm Number of Axes:

5

No.

of Spindles:

ATC

Working Table Size(mm):

6000*4000

Machine Type:

CNC Router

Travel (X Axis)(mm):

4000 mm

Travel (Y Axis)(mm):

6000 mm

Repeatability (X/Y/Z) (mm):

0.03 mm

CNC or Not:

CNC

Place of Origin:

Shandong, China

Brand Name:

ACCTEK

Voltage:

220V/380V

Dimension(L*W*H):

6000*4000*2500mm

Weight (KG):

5000

Warranty:

Unavailable

Key Selling Points:

High Rigidity

Applicable Industries:

Manufacturing Plant, Advertising Company

Machinery Test Report:

Provided

Video outgoing-inspection:

Provided

Warranty of core components:

1.5 years

Core Components:

Bearing, Motor, Gear, Engine, Gearbox

Working area:

6000*4000*2500mm 360 degree

Spindle:

Italy Spindle

Spindle power:

10kw Air-cooling

Spindle speed:

0-24000RPM

Control system:

Taiwan Syntec Control System

Compatible Software:

Original Alphacam

Transmission:

Helical Gear Rack/ TBI Ball Screw

Motor:

Japan 1 - Italy spindle original famous brand from Italian, also can choose Chinese brand spindle 2 - SYNTEC control system from Taiwan with high performance and competitive price 3 - Yaskawa servo motor and drives from Japan with high precision and long life 4 - HIWIN linear guide - made from Taiwan, used for linear reciprocating motion 5 - Working area: 6000*4000*2500mm C Rotary Axis: 360 degree 6 - Gantry frame structure, more stable 7 - Drive System: X, Z-with high precision ball screw, Y- Gear and rack.

8 - Automatic Tool Calibration - To guide rail and slide block, make it run better 10 - Schneider electrical components - original brand from France 11 - Japanese Omron Switch with long life 12 - APEX Reudcer from Taiwan 13 - T-Slot table with vacuum combined - Use vac-sorb, also could use clamp fixed materials 14 - 380V/3ph/50 or 60HZ
