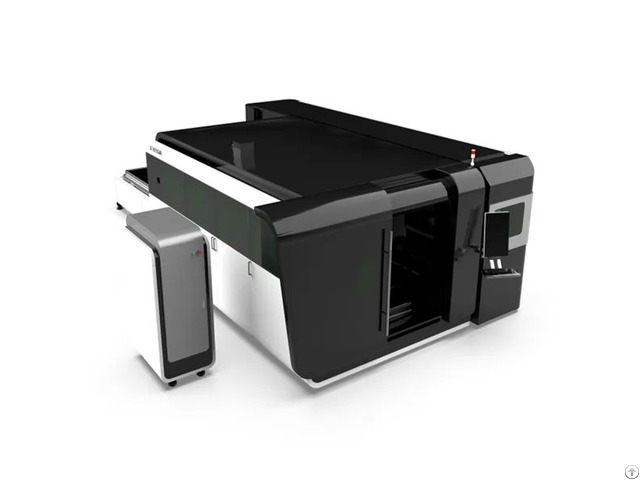

CNC Fiber laser cutting machine LF3015GAR

LF3015GAR (6m tube) with pipe cutting

Main Configuration

Fiber Laser Source

* Details: 100, 000 hours life time, more stable, cost-efficient, free maintenance.

Control System- CYPCUT

* Auto edge seeking function, flying cutting function and nesting function.

* Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, NC, GBX etc.

* More flexible to operate---after finishing making design by drawing software such as Solidworks, CAD, Then operator can put the design into CYPCUT control system for cutting directly and no need any programming, and transfer to code.

Double Air Chuck

Quick change pipes, auto finding center of gravity.

Large diameter: φ15-220 Laser Head:

* Brand: Swiss Raytools auto-focus laser head

* Advantages:

--High Presicion: Without manuel, zero fault.

--High Effectiveness: Without manuel, Save time

--High Safty: Anti-collision design, height adjustment high sensitivity

Aviation Aluminum Gantry

* It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.

After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

* Advantages: Good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

* Comparison:

--Steel Gantry: 280kg;

--Cast aluminum Gantry: 180kg;

--Aviation aluminum Gantry: 138kg.

With a light weight, it will greatly increase the processing speed.

The Segmented Rectangular Tube Welded Bed

* Structure advantage:

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.

Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

* For material : Through 600℃ heat treatment to keep stronger and more solid

* Feature: High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular sheet wall is 14mm；weights 8000kg.

WIFI Remote Control System

By this function, we could remote control your computer and machine to guide you install/operate or find/solve problem once you meet difficulty in several min.

Gear and Rack - Taiwan YYC

* High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque.

Servo Motor-Japan YASKAWA

* Y axis: two sets 1.8kw Japan YASKAWA servo motor and driver.

* X axis: one set 850w Japan YASKAWA servo motor and driver.

* Z axis: one set 750w Japan PANASONIC servo motor and driver.

Higher power of motor and drive makes higher moving speed for laser head.

Reducer - France Motor Reducer

Effectively decrease the speed of beam, make cutting and machine more stable to keep machine life long work.

Electronic Components - France SCHNEIDER

* Circuit protection against short-circuit currents, Circuit protection against overload currents, Breaking and industrial disconnection as per standards IEC/EN 60947-2.

* Overvoltage resistance, High performance limitation to fast closing independent of the speed of actuation of the toggle.

Square Rail-Taiwan HIWIN (flange type)

* Low noise, wear-resistant, smooth to keep fast Moving speed of laser head.

* 35mm width and 165 four pieces stock on every table to decrease the pressure of rail.

Pneumatic Components - Japan SMC

* Stepless control of air pressure proportional to an electrical signal.

* Serial communications specifications.

* Compact/lightweight (Integrated communication parts).

Bearing - Japan NSK

* These bearing housings have square flange which can be easily attached to a machine with four bolts.

* With its simple mounting face, this bearing unit is widely used.

Automatic Rail Lubrication System

We can set the adding oil's frequency and quantity by adjusting the relevant parameters on computer, so it largely improve the machine's lifetime, save manpower.
