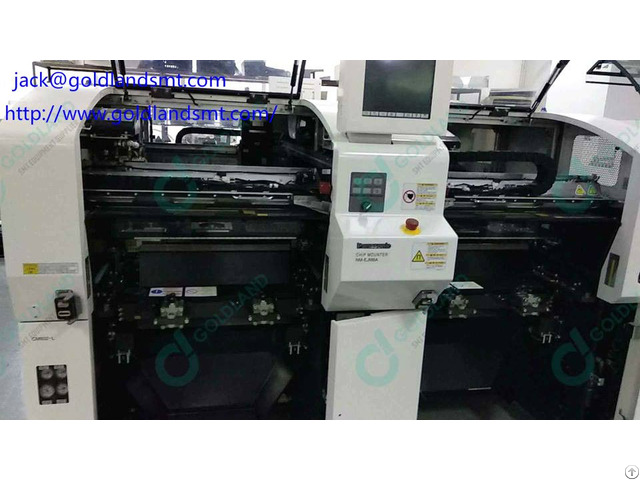

Cm602 Smt Pick And Place Machine - China

Description

MODEL ID: CM602-L

MODEL NUMBER: NM-EJM8A

PCB DIMENSIONS: L 50 mm x W 50mm to L 510 mm × W 460 mm

HEAD TYPE: High-speed head (Type A-2 head, 12/12 nozzles) (OPTION) Number of nozzles: 12 nozzles Maximum speed: 0.036 s/chip (100, 000 cph) Placement accuracy: ±40um/chip Component dimensions: (01005")0402 chip*5 to L 12mm x W12mm xT6.5mm

HEAD TYPE: High-Flexibility Head (OPTION) Number of nozzles: LS 8 nozzles Maximum speed: 0.048 s/chip (75, 000 cph) Placement accuracy: ±40um/chip, ±35um/QFP-24mm, ±50um/QFP<24mm Component dimensions: (01005")0402 chip*5 to L 32mm x W32mm xT8.5mm*8

HEAD TYPE: Multi-Functional Head (OPTION) Number of nozzles: 3 nozzles Maximum speed: 0.18 s/QFP (20, 000 cph) Placement accuracy: ±35 um/QFP Component dimensions: (0201")0603 chip to L 100mm x W 90mm xT 25mm*7

PCB EXCHANGE TIME: 0.9s (board length: up to 240mm under optimum conditions)

ELECTRIC SOURCE: 3-phase AC 200, 220, 380, 400, 420, 480V, 4.0kVA

PNEUMATIC SOURCE: 490 kPa, 170 L/min (A.N.R)

DIMENSIONS W 2, 350 mm x D 2, 290 mm *2 x H 1, 430 mm *3

MASS 3, 400 kg contact: jack at goldlandsmt.

com
