Closed Circuit Cooling Tower - China

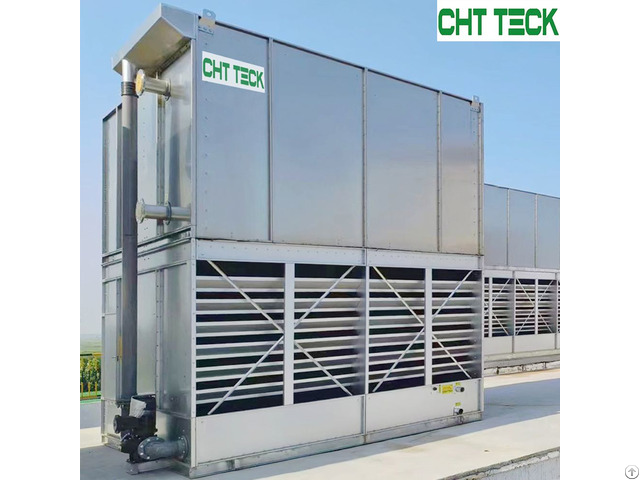

CHT TECK Cross Flow Type Closed Circuit Cooling Tower

CHT TECK brand cooling tower is also widely used for air conditioning system, data center, air compressor unit, industrial water cooling, casting, pharmaceutical, power plants, injection mold machinery, petrochemical etc.

Design Features

A.

Induced Draft Cross Flow Modular Design

B.

Induce Draft Axial-Flow Fans

C.

Bottom Four-Side Air Inlet

Water Flow Rate Can Range From 20T/H to 700T/H

Operating Principle

CHT TECK brand cross flow type closed circuit cooling tower uses water and air as cooling media to exchange heat with the high-temperature fluid that flow inside the coil.

Internally equipped with spray water system, coil, fill, drift eliminator, etc., externally equipped with spray water pump, electronic water descaling device, and axial flow fan on top of the coil side.

Under the ventilation action of the axial fans, the interior of the cooling tower will become a negative pressure state.

During operation, the cooling spray water is evenly and completely covered on the surface of the coil under strong air force.

The high-temperature fluid enters into the fluid inlet at top of the coil, and then the fluid flows out from the outlet at bottom of the coil.

During this process, the heat of the high-temperature fluid is exchanged by the cooling spray water and fresh air blowing through the coil, and enhanced latent heat evaporative cooling by fresh air, the heat exchange effect is significantly improved.

Some cooling spray water vaporizes into water vapor, and exhausted away by the fan and discharged into the atmosphere, during this process it carries away a large amount of heat.

At the same time, the moisture in the hot air is intercepted by the drift eliminator and flow back to the spray water basin.

The high-temperature spray water that has not been vaporized flows into the fill package and is cooled by the fresh air blowing through it.

After sufficient cooling, the spray water flows back to the spray water basin, and then it will be pumped into spray system for continued circulation by the spray water pump.

The make up water is necessary to make up the spray water, which is controlled by the float valve equipped in the spray water basin, to make up the spay water lost.

Packaging & Shipping:

CHT TECK brand cooling tower designed with modular parts, suitbale for container loading.

Why choose CHT TECK company?

*Skillful production worker team make sure equipment good quality.

*Have a sound quality control system.

*Good sense of service.

Focusing on meeting customer needs.

*Products hot sell over 70 countries worldwide.

*Cooperative with many international famous brands, such as Coca-Cola, Nestlé, Ingersoll Rand, GEA, Mycom, etc

Company Contact:

• Posted By: CHT TECK CO., LTD

• Phone: 18366567287

• Address: No. 4616 Shengli East Street, Kuiwen District, Weifang , Shandong , China

• Email:

• Website: https://www.chtrefrigeration.com/

• Business Description: CHT TECK Co., Ltd has been engaged in the design and manufacturing of evaporative and air cooling equipment.

  And CHT TECK has own factory for refrigeration pump.

  CHT TECK factory located in Shandong province China, total workshop area is 38000m2, production capacity over 2000 units each year.

  CHT TECK products main products include cooling tower, closed circuit cooling tower, adiabatic cooling tower, evaporative condenser, air cooler etc.

  Products hot sell over 60 countries worldwide.

  Because of the excellent operation performance and reliability, CHT TECK has won a good reputation in markets worldwide!

  CHT TECK has been engaged in evaporative and air cooling technology, with strong technical team and skillful workers, over decade design and manufacturing experience to make sure the evaporative condensing and cooling equipment with high performance and realiable.

  ASME certificated equipment available.

  In refrigeration field, CHT TECK has own subsdiary in refrigeration pump, hermetic canned motor type pumps, widely used in ammonia, freon, CO2 refrigeration system, and win a good reputation for reasonable structure design, and reliability in operation service life.

  CHT TECK brand pumps win a good reputation in refrigeration field.

  And CHT TECK is the authorized distributor of AMG valves for globle market.

  AMG brand is the leadship in industrial refrigeration valves of China, famous for the valves high quality and replacable to world top class valves, like Danfoss, Hassan.

  And AMG is OEM supplier of Parker valves in China.

  Till 2024, CHT TECK established sales branches in Philippines, Vietnam, India, Spain, Russia, Mexico.

  And build a production base in India by cooperation with local business partner.

  The professional technical engineer team from CHT TECK, able to supply accurate and suitbale proposal for your projects.

  Focusing on quality and professional services, CHT TECK is your ideal business partner.

  We look forward to a longtermcooperation with you!
