Ck6180f Heavy Duty Horizontal Metal Cnc Turning Lathe - China

price: 23000.00 Dollar US$

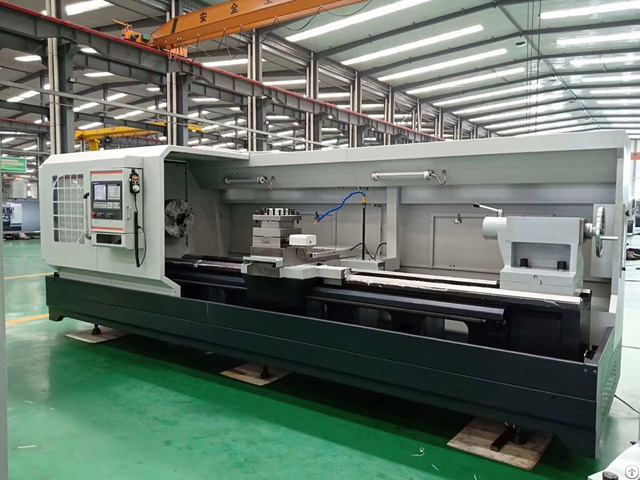

Ck6180f Heavy Duty Horizontal Metal Cnc Turning Lathe

Products Photos Catalog Ck6180f Heavy Duty Photos Catalog

STANDARD ACCESSORIES

Electric 4 position, 3-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield

OPTIONAL ACCESSORIES

Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield

SPECIFICATIONS

SPECIFICATIONS Units CK61100F CK61100F Manual HYD.

Swing over bed mm 1000

Swing over cross slide mm 680

Distance between centers mm 1000/1500/2000/3000/4000/ 5000/6000

Guideway width mm 600

Max.

load capacity T 4

Spindle bore mm 104

Spindle bore taper - Metric φ120/MT5

Spindle nose type - C11

Spindle speed steps - VF.

3 steps HYD.

4 steps

Spindle speed range rpm 10-800 17-800

Chuck mm φ400 3-jaw manual

Turret/tool post - Electric 4 position

Tool size mm 40×40

X axis travel mm 520

Z axis travel mm 850/1350/1850/2850/3850/4 850/5850

X axis rapid traverse mm/min 4000

Z axis rapid traverse mm/min 6000

Tailstock quill diameter mm φ120

Tailstock quill taper - MT6

Tailstock quill travel mm 250

Main spindle motor kw 15

Coolant pump motor kw 0.125

Weight for 1000 kg 5000

Weight for 1500 kg 5400

Weight for 2000 kg 5800

Weight for 3000 kg 6600

Weight for 4000 kg 7400

Weight for 5000 kg 8200

Weight for 6000 kg 9000

Dimension for 1000 mm 3500x2000 x 2100

Dimension for 1500 mm 4000x2000 x 2100

Dimension for 2000 mm 4500x2000 x 2100

Dimension for 3000 mm 5500x2000 x 2100

Dimension for 4000 mm 6500x2000 x 2100

Dimension for 5000 mm 7500x2000 x 2100

Dimension for 6000 mm 8500x2000 x 2100
