Circuit Board Testing Dissecting Microscope Ts 30s - China

Stereoscopic Microscope, Circuit board testing, Dissecting microscope TS-30S

Microscope Stand

SPECIFICATION:

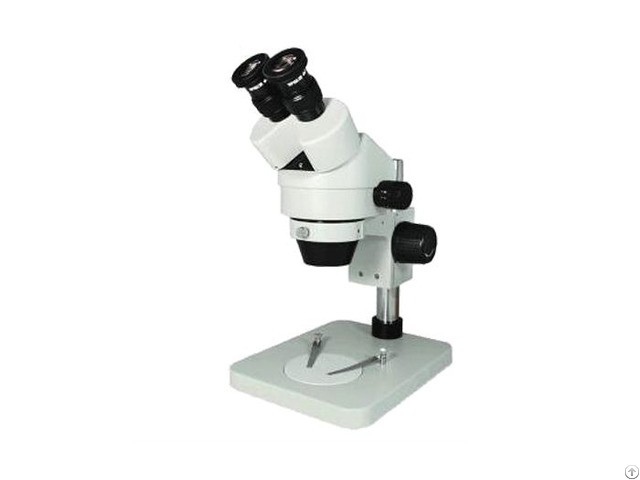

TS - 30 s binocular continuous variable times a stered microscope

Product description:

TS - 30 s binocular continuous variable times a stered microscope using LED light source, high resolution, high resolution and strong stereo feeling, etc, and can get times continuously.

Optical system about separate light path, towards a prism object into exactly, accord with human

physiology habit.

PLAN10X eyepiece is high eyespots wide-angle eyepiece, the entire field of

view, wear glasses of workers are not subject to any restrictions.

Perfect streamline design, modelling beautiful generous, excellent optical system and reliably operating structure, make the image more clear, more simple operation, and to bring you the new feeling.

Widely used in teaching demonstration, dissection, the seeds of agroforestry inspection

screening, * * department of forensic examination, electronic precision components

assembly maintenance, textile quality control, auxiliary differential stamps and all kinds of material surface observation.

Performance characteristics:

1, the continuous adjustable magnification

2, the LED light source, light is soft

3, modelling beautiful and easy, convenient operation

4, separate light path, stereo sense is strong, clear imaging

5, using high eyespots wide-angle eyepiece, wide field of view, the field of flat.

Microscope technology parameters

number Name Technical parameters

1 Eyepiece multiples 10 x high eyespots wide flat field view 20 mm in diameter

2 Multiple objective 0.7 X to 4.5 X object lens change times than 1: 6 - 4

3 Binocular vision head 55-75 - mm distance depending on the degree of regulating plus or minus 45 inclined diopter may rotate 360°

4 field 32 mm to 4.4 mm

5 The total magnification 7 X - 45 X (0.5 X, 2 X large objective of choose and buy, 20 X eyepiece can reach 3.5 X - 180 - X)

6 Working distance Maximum working distance 100 mm

7 The adjusting range is Lifting the adjusting range is 45 mm stud the adjusting range is observed content maximum height 140 mm to 100 mm

8 Glass object stage Glass slide table 80 mm in diameter

9 The light source LED light source, up and down adjustable brightness of 220 v

10 Instrument weight Net weight: 4.0 kg gross weight: 7.0 kg

11 Size of instrument 24 x28x40 instrument size (cm) packing size 28 x40x44 (cm)

Number Name Technical parameters

1 Flat field eyepiece WF20X

2 A big objective 0.5 X, 0.3 X, 2 X

3 The light source Annular fluorescent light source, annular adjustable LED light source, the double cold light source, lamp

4 Moving workbench Movement scope x-y: 70 x50mm

5 scale Objective micrometer 1 mm and 0.01 mm

6 Ocular transformation mouth 0.5 X eyepiece transformation

6 camera Electronic eyepiece, 350000, 350000, 2 million, 3.2 million, 1.3 million (pixels)With a single, timing, continuous acquisition image, display scale, measuring, and other functions, and can be connected multimedia, print, EMAIL output a variety of ways.
