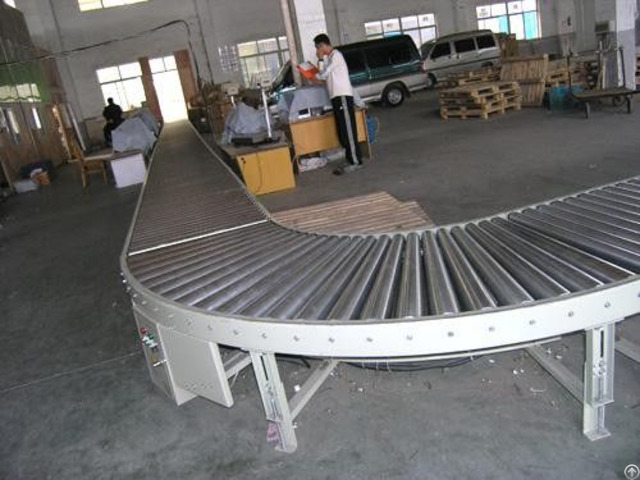

China High Quality Stainless Steel Turning Drum Conveyor Manufacture - China

1 - It is easy to connect and filter between roller conveyors, and it can be used to compose complex logistics transportation system and shunt and confluence system by using multiple roller lines and other conveying equipment or special machines, so it can be used widely in many aspects.

2, main material: carbon steel, stainless steel, aluminum, PVC, plastic steel.

3, the driving mode of turning roller transportation is: deceleration motor drive, electric roller drive.

4, applications include: electronics, beverages, food, packaging, machinery, electronics, light industry, tobacco, chemical, pharmaceutical, rubber, automotive, logistics and other industries.

5, transmission mode: single sprocket, double sprocket, O-belt, plane friction belt, synchronous belt, line shaft drive.

6, main parameters: 1) the length, width and height of the conveying object; 2) the weight of each conveying unit; 3) the bottom condition of the conveyer; (4) whether there are special working environment requirements (e.g. humidity, high temperature, chemical effects, etc.

); 5) conveyor is non-dynamic or motor-driven.

6) the angle of turn conveying (for example, 90 degrees turn, 45 degrees turn, 180 degrees turn).

7 - To ensure the smooth delivery of goods, at least three rollers must be in contact with the conveyor at any point in time.

If necessary, pallets shall be added to the soft bag packaging.

1) length selection of rollers: goods of different widths shall be fitted with rollers of different widths.

Generally, "conveyor 50mm".

2) selection of wall thickness and shaft diameter of the roller: according to the weight of the conveyer, it is equally distributed to the contacting roller, and the required weight of each roller is calculated.

In order to determine the wall thickness and shaft diameter of the roller.

3) Roller material and surface treatment: depending on the transportation environment, determine the material and surface treatment (carbon steel galvanized, stainless steel, etc.

) Black or glue).

4) choose the installation mode of roller: according to the specific requirements of the whole conveyor, choose the installation mode of roller: spring press-in, inner tooth shaft type, all-flat tenon type, all-shaft pin hole type, etc.

For cone rollers of a bend machine, the width and taper of the roll surface depend on the size of the goods and the radius of the turn.
