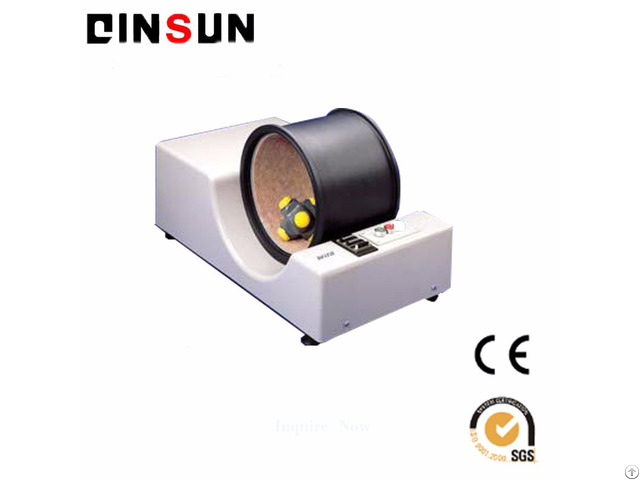

Carpet Appearance Assessment Tester From Qinsun Iinstruments - China

The carpet appearance assessment tester is a popular apparatus used in the evaluation of the appearance retention of carpets.

Provides a rapid method of test - completion within one working day.

The steel ball or the hexagonal feet randomly roll in the rotating drum, which is covered with carpet textile samples.

Observe the appearance of change according to the standard requirements after the test.

It provide the realistic pile condition due to its reciprocating mechanism.

The drum uses a reversing mechanism to give more realistic pile disturbance, and the required number of revolutions may be preset on a revolution counter.

The 3.8kg tumbler has six polyurethane stud feet.

These six feet can be replaced If they are damaged, severe wear or after two-years’ application.

Technical Parameters

Items Parameters

Inner diameter 305mm±1mm

Wall thickness 8mm

Internal depth 200mm±1mm

Counting interval 0-999999

Nail number 6

Rotation speed 35±2r/min

Dimension 450mm(W)*420mm(H)*780mm(L )

Power supply 220AC, 50Hz

Weight 85Kg Total quality of polyurethane screw 3.8kg

Diameter of screw 40mm

Height of screw 15mm

Aspect of screw 15mm

Thickness of backing plate 3mm±0.25mm

Shore hardness of foot nails 85-100 Features

- Used in the evaluation of the appearance retention of carpets ；Barrel measurement with substrate;

Quick test, completion within one working day.

- It provide the realistic pile condition due to its reciprocating mechanism.

The number of rotations can be set in advance by a rotary counter.

-The 3.8kg tumbler has six polyurethane stud feet.

These six feet can be replaced If they are damaged, severe wear or after two-years’ application.
