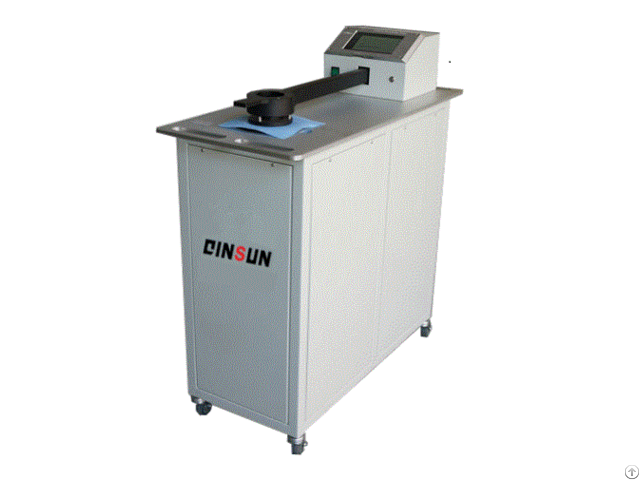

Bs 5636 Air Permeability Tester - China

Air Permeability Tester Testing Standards:

BS 5636, JIS L1096-A, DIN 53887, ASTM D737, ASTM D3574, EN ISO 9237, GB/T 5453, EDANA 140.2, TAPPI T251, EDANA 140.1, ASTM D737, AFNOR G07-111, ISO 7231 Applications:

The Air Permeability Tester accurately and swiftly determines the resistance of fabrics (woven, knitted and nonwoven textile) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.

The air permeability of the fabric is calculated automatically within a short time.

Air Permeability Tester Technical Parameters:

1 - Test head: 5cm2, 20cm2, 25cm2, 38cm2, 50cm2, 100cm2;

2 - Test mode: Automatic;

3 - Pressure range: 10-3000Pa;

4 - Air velocity: 0.1-40000mm/s(5cm2);

5 - Test time: 5-50s;

6 - Deceleration time: 3s;

7 - The total test time: 10-58s;

8 - Minimum pressure: 1Pa;

9 - Maximum pressure: 3000Pa;

10 - Accuracy: ±2%;

11 - Measurement units: mm/s, cfm, cm3/cm2/s, l/m2/s, l/dm2/min, m3/m2/min and m3/m2/h;

12 - Data port: RS232C;

13 - Pressure system: automatic pressure adjustment (available for larger test area);

14 - Mute suction pump;

15 - Automatic identification system for test head and automatic adjustment for pump;

16 - Custom setting function for actual need;

17 - Automatic switch between coarse and fine adjustments.

Fully enclosed pipe ensures leakage lower than 0.1l/m2/s.

Air Permeability Tester Basic Configuration：

Sample Holder 5cm2;

Sample Holder 20cm2;

Sample Holder 25cm2;

Sample Holder 38cm2;

Sample Holder 50cm2;

Sample Holder 100cm2;

Calibration plate
