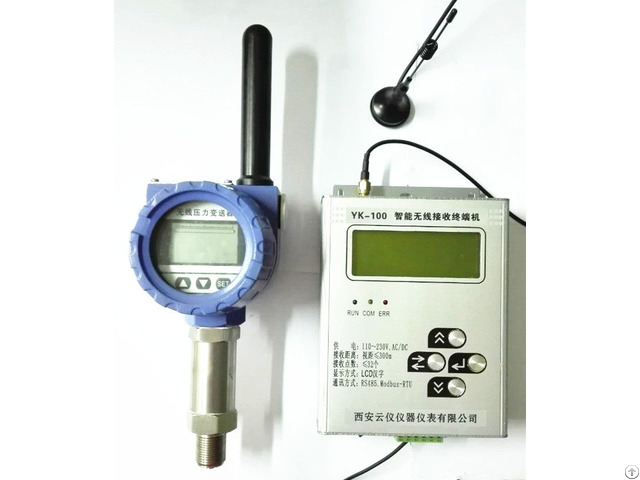

Battery Powered Wireless Pressure Transmitter - China
price: contact company for price
Introduction to Wireless Pressure Transmitter: The wireless pressure transmitter uses a diffused silicon pressure sensor based on the LORA wireless transmission pressure transmitter.
The wireless pressure transmitter system is divided into a meter terminal transmitter and a collection terminal.
The collection terminal can display the pressure in real time and is connected via a USB interface.
The signal is transmitted to the computer, and our company also provides the customized service of the upper computer, which differentiates to meet the needs of customers.
Wireless pressure transmitter transmitter module parameters: Transmission distance: 旷 旷 3000 m (0.8kbps, +20dBm)
Penetration capability: vertical penetration of 10 floors (0.8kbps, +20dBm)
Working frequency: ISM free channel 410-460MHz, can be customized 315Mhz, 868MHz or 915MHz
Transmit power: 100mW (7-level adjustable, 3dB step)
UART interface: Multiple rate options (up to 115200bps, other higher rates can be customized)
High sensitivity: -132dBm@810bps ultra-high sensitivity Lora modulation
Voltage range: DC3.3V-5.5V, can be customized operating voltage operating range
Current consumption: 12.5mA (receive), 120mA (transmit), low power standby mode 5.5uA (1.5 second wake-up cycle), for battery-powered applications.
Wireless pressure transmitter features: The instrument terminal is powered by a battery and has low power consumption.
The speed at which data is collected can be set at the display terminal, which is convenient and reliable.
The wireless terminal can be displayed with or without display, and can be equipped with a mechanical display to meet the needs of differentiation.
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co., Ltd
- Phone: 00862988812007
- Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China
- Email:
Published date: April 11, 2019
- Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.
And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.
They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
