Bally Flex Tester - China

Introduction

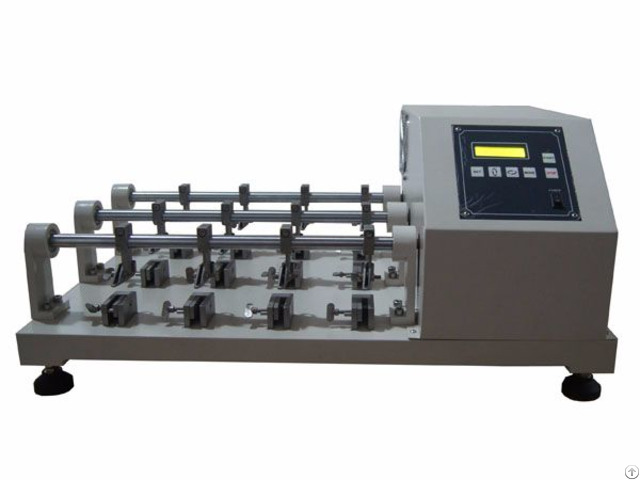

Bally flex tester is designed to evaluate the flexural resistance of leather to continual flexure.

The 12-station flex tester is a popular model.

The user can easily change the station arrangement, take and install samples.

The whole tester is of stainless steel structure.

Digital counter can preset the running times so that the instrument automatically stops when reaching the set values with no need of staff to attend to.

Application

Bally flex tester is designed to evaluate the flexural resistance of leather to continual flexure.

It is an universal instrument to assess the flexural resistance of all kinds of light leathers and surface trim, as well as to evaluate the specimen’s propensity to crack, similar to the crease that forms in a shoe's upper that flexes during walking.

The flexing mechanism of the Bally flex tester is different from that of the shoe upper flex tester.

The functions of two testers complement mutually.

The tester is also used for the pretreatment of specimens prior to the determination of water vapor permeability– especially of shoe upper materials used for protective footwear.

Standards

EN ISO 20344: 6.6 Personal Protective Equipment - Test Methods For Footwear

UNI 4818 Polymeric materials coated fabrics.

Test methods

DIN 53.351 Inspection of leather, artificial leather and similar flat fabrics

UNE/I.U.P.

20, I.U.P.

10+20, I.U.P.

20 Features

1 - The machine is simple to use, installed on the table, and can plug in anytime.

2 - There are 12/24 -station models, also available for low temperature models (up to -20 ° C).

The temperature values vary depending on the ambient temperature of the machine.

3 - Two types of selective test stations to test multiple samples at a time with a high degree of stability.

4 - The control panel has a high degree of automation, easy operation.

Technical Parameters

Items Parameters

Flexing angel 22.5°

Speed 100±5cpm

Instrument material Stainless steel

Surface treatment Paint spraying

External dimension 85.6×52×38cm(L×W×H)

Weight 41kg

Power supply 220V, 50Hz, 1A
