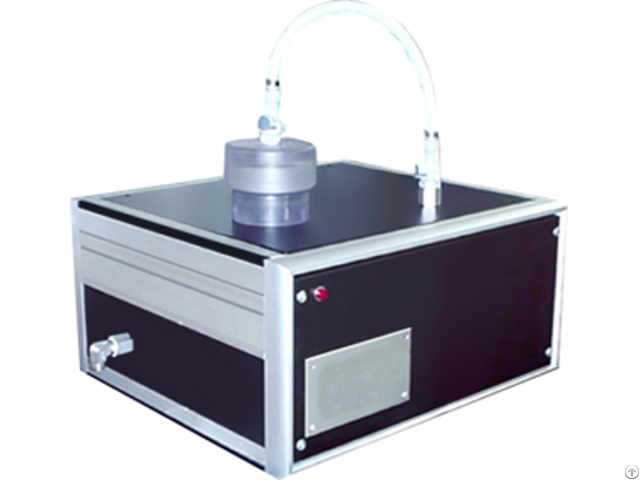

Average Fiber Diameter Analyzer - China
price: 1.00 Dollar US$
The Average Fiber Diameter Analyzer has a simple, fast and reliable technique for measuring average particle size.
This measurement can not be easily achieved by any other technique.
Combined with the innovation of automatic viscosity flow controller for precisely regulating the flow permeability, the instrument can be used for measuring A wide range of fiber products.
Operation Principle The flow rates of gas through the sample as a function of deferential pressure are accurately measured and these results are used to compute average fiber diameter on the basis of the relationship reported by C.N. Davies.
(C.N. Davies, The Separation of Airborne Dust and Particles, Proceedings of the Institute of Mechanical Engineers, London, 1B, 1952, pp.
185-194).
Application Performance of many fibrous products such as filter media, membranes, battery parts, and household products is determined primarily by factors such as fiber diameter and packing density.
For many applications quick estimation of the average fiber diameter is required.
The techniques that are used for fiber diameter measurements are often involved and time consuming.
The PMI’s completely automated average fiber diameter analyzer has the unique ability to measure average fiber diameter of bulk samples in a few minutes.
It is used in industry for production control, quality control, and performance evaluation.
Features · Uses nitrogen or other noncorrosive gases; no expensive gas mixtures required
· Windows-based software handles all control, measurement, data collection, and report generation; manual control also possible
· Compatible with Windows 95 or higher
· Real-time graphical test display depicts testing status and results throughout operation
· Nondestructive testing
· Length of test approximately 5 minutes
· Wide range of acceptable sample types and sizes
· Minimal maintenance required Technical Parameters Items Parameters
Sample size 1~10cc
Pressure range 0~500psi
Sealing gas Nitrogen or any non-corrosive gas
Pressure transducer range 0~500psi
Mass flow controller range 10cc/minute~100cc/minute
Power supply 110/220VAC, 50/60Hz
Dimension 7" H x 17" W x 17" D
Weight 30lbs
