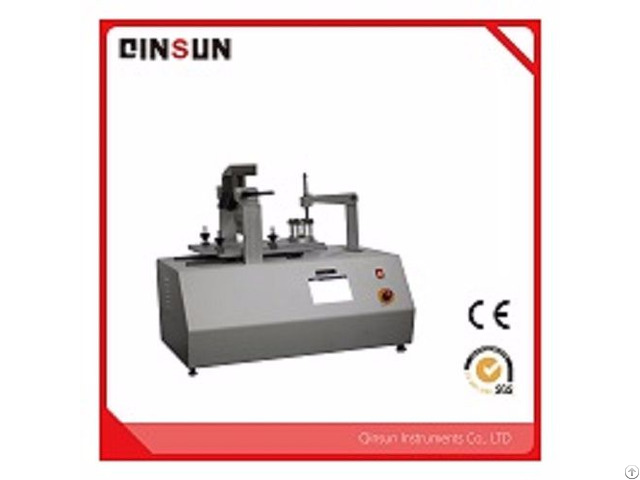

Automotive Industry Multi Functional Scratch Tester - China

Multi-Functional Scratch Tester is suitable for testing automotive interior materials, plastic, rubber, leather, coated fabric, coating materials, composite materials, paint, ink, soft metal and other industries, and widely used in product quality control, new product development performance verification, detection mechanism test and other fields.

Standards PV 3952 Plastic interior parts scratch resistance test

Ford BN 108-03, 13 Scratch resistance test

BMW 0180, PA-P 028 Scratch resistance test (Cross-cut method)

BMW GS 97034-9, PA 0015 Scratch resistance test

DAF KEUR 00824-401 Scratch resistance test (Cross-cut method)

DAF KEUR 00824-402 Scratch resistance test

GME 60401 Scratch resistance test (Cross-cut method)

GM 14829 Scratch resistance test (Cross-cut method)

Jaguar-Landrover TPJLR.

52.004 Scratch resistance test

GM N 3943 Scratch resistance and scratches for plastics - Five fingers test

LP 463DD-18-01 Scratch resistance and scratches for plastics - Five fingers test

GMW 14130, 14688 Scratch resistance test

8350Z-SDA-9000 Scratch resistance test

NES M M0159 Polypropylene interior parts scratch resistance test Instrument features:

1 - The instrument consists of the motor drive mechanism, scraping components, sample clamping fixtures and other components.

2 - Scratch components include scraper brackets, scraping fingers, Scratches positioning sleeve, presses device (weights and weight support bars).

3 - The instrument can be free to install, replace, disassemble different specifications of the scraping fingers.

it also can impliments uniform speed unidirectional straight line scratch movement under different load .

4 - The instrument that adopts embedded systems, man-machine interface operation automatically controls the test process .

The use of precision servo motor, ball screw drive has a decisive role in controlling the scratch speed accuracy under the relevant standards .

5 - The instrument uses tungsten carbide material to make scraping finger for increasing the instrument life.

6 - The instrument which uses aluminum and stainless steel is appearance concisely, lightweight and corrosion-resistant.

Technical Parameters

Items Parameters

Test partition Finger / plastic finger scratch test

Stroke range 10-200mm

Speed range 10-200mm/s

Speed buffer 10±1mm

Scratch pressure 2N, 3N, 5N, 7N, 8N, 10N, 12N, 15N, 20N (Optional)

100 cross-cut scratches moving distance 0.5mm-2mm(Below 2mm should be equipped with a special scratch)

Scratch head materi
