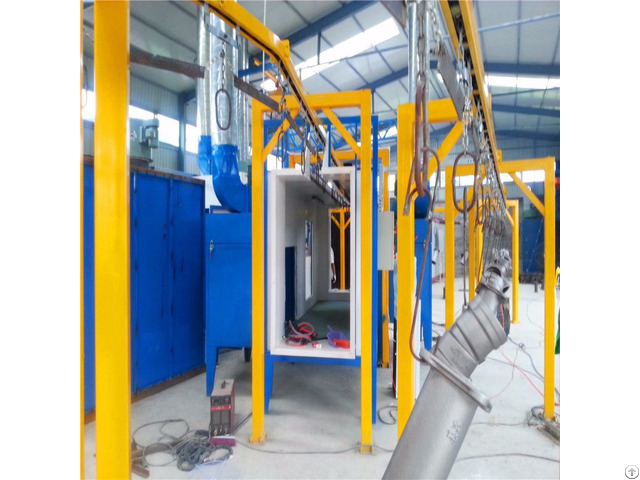

Automatic Spray Booth Painting Line For Auto Parts Powder Coating Machinery - China

Before processing equipment can be divided into the spray type, immersion type, manual dip tank type, are made of corrosion resistant materials according to the product size can choose different processing forms, reasonable structure, can achieve the ideal use effect.

Spraying pretreatment features: commonly used liquid through the nozzle to spray the surface of the product, because of the jet will produce certain pressure, the surface can get a good flushing effect have the characteristics of large quantities of continuous operation, but relatively large one-time investment, liquid dosage is bigger also, suitable for long and simple surface treatment.

Spray pre-treatment equipment system adopts the centrifugal pump through a pipeline formed by the nozzle high-pressure atomization effect and purpose of cleaning.

Its advantage lies in the high pressure atomization effect, make the surface clean, recycling and cleaning fluid, so as to achieve the purpose of energy conservation and environmental protection, generally applicable to the assembly line mass production, the effect is good, widely used in home appliances, hardware, lighting, toys, auto parts and other industries.

The powder sprayed from the spray gun, the part which is not adhesion on the workpiece is brought to the inside of the large cyclone by the airflow that generated by the exhaust fan, the larger powder is be separated in the separator and drop on the vibrating screen, shake the sieve through the vibration motor, then the powder which has been removed impurities is dropped into the powder recovery group.

Return to the powder box through the powder recovery pump and the powder supplying tube, then be reused.

Effectively reduces the waste of powder.

The powder that has not been separated from the large cyclone is sucked into the secondary recovery, the filter element in the secondary recovery separates the remaining powder from the air, then the purified air is discharged to the inside of the workshop.

The filter element will be cleaned with compressed air for a period of time via the rotate wing and the powder will be blown into the powder collecting bucket.
