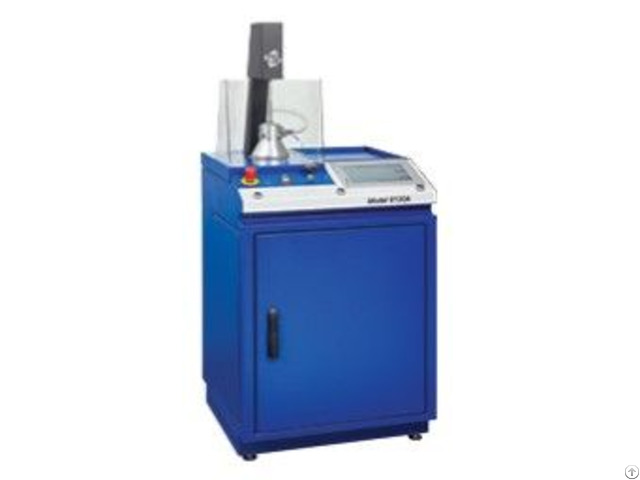

Automated Filter Tester 8130a - China

The Automated Filter Tester Model 8130A continues to be the best solution for testing particulate respirator filters, disposable filtering face pieces, and a wide assortment of filter media.

The filter testers have been used in quality control and manufacturing by leading filter and filter media manufacturers and test centers around the world for more than 20 years.

Based on established model 8130, the world's most-used filter tester, model 8130A now offers higher sensitivity and resolution - up to 99.9999 percent efficiency has been produced with Emery oil at concentrations of 200 mg/m³ - at a lower cost of ownership due to the new serviceable photometers inside.

The model 8130A features a high degree of automation and self-diagnostics that greatly simplifies operation, increases throughput, and improves overall measurement performance.

Whether looking for a stand-alone tester to check a few filters per day or need to integrate a tester in an automated, high-volume production line, the model 8130A is up to the challenge.

The built-in capability to test with salt and oil means that just one unit is needed to test your product to:

US 42 CFR 84, GB2626, JMOL ISO 16900-3, EN 143 ISO 23328-1 (and more) Features and Benefits

Complies to more standards than any other filter tester

Salt and oil testing in one unit Highly consistent test results

New user-interface and data recording options

Customizable fully automated testing sequences

Ergonomic design

Reduced cost of ownership with new serviceable photometers

Worldwide service and support Applications USA commercial respirator regulation (42 CFR part 84)

European EN 143, ISO 16900-3 and related respirator standards View EN 143 Compliance Report (US)

View EN 143 Compliance Report (DE)

ISO 23328-1 (testing filters for anaesthetic use)

JMOL (Japanese respirator standard)

And, many more national respirator regulations

Filter media testing

Consult your TSI representative for more details Specifications Items Parameter

Apllication Load and quality control

Max Efficiency 99.999%

Aerosol Type DOP/PAO/DEHS/Paraffi/Othe rs Oil Aerosol, Salt

Aerosol Generation Atomizing

CMD 0.2μm(Oil)or 0.75um(NaCl)

GSD ＜1.6(Oil)or <1.86(NaCl)

Flow Rate 15-100L/min

Resistance 0-150mm H2O(0-1470Pa)

Particle Detect Scatter Photometer

Measurement Time 10 Sec.

Data Report LCD, RS-232

Operation Independent tewster, automatic production line

Standard compliant US 42 CFR part 84, EN 143, JMOL, ISO 23328-1 ISO 16900-3

Power Supply 115VAC, 60Hz, 10A或230VAC, 50Hz, 5A

Compressor Air 80psig, 7scfm(550kPa, 198std.

L/min)

Dimension 70cm x 70cm x 147cm(28in, x 28in.

x 58in.

)
