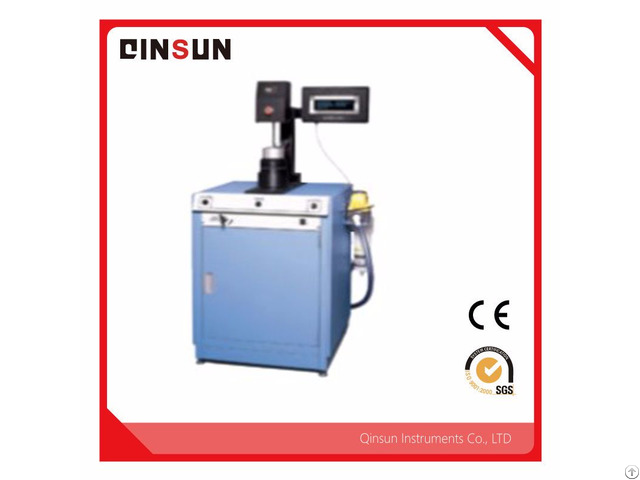

Automated Filter Tester 8127 - China

This Automated Filter Tester, an Oil aerosol tester, can quickly and accurately measure the filtration efficiency of filtration protection equipment and material.

The Automated filter tester designed to meet the global commercial respirator standards, durability, reliability and low maintenance frequency, which could meet the harsh requirements of manufacturing and quality control environment.

Specially designed aerosol generators and detectors enable highly reproducible and reproducible filter efficiency testing.

Beyond that, the model 8127 have a highly automated and self-diagnostic system that greatly simplifies operation/ increases productivity and improves overall measurement performance.

Operations The filter placed in the middle of the filter fixture, press the start double switch to start testing.

Cylinder quickly descends the upper end of the filter fixture, the aerosol passes through the filter.

Two optic-scattering photometer simultaneously measure the aerosol concentration level upstream and downstream of the filter to calculate the particle penetration value.

High-precision electronic pressure transducers determine resistance and flow rate.

The pressure and photometer readings determine zero compensation and background values.

Features Benefits

Compliance with various respirator regulations.

Simple Fast and automated Operation.

The test results are highly consistent.

The warrant is designed to manufacture the environment.

Service and Support fundamental Dust Generation: Compressor air system with aerosol generator to provide a certain amount of test dust.

Test Chamber: Main test chamber and sample holder.

Monitoring and regulating system; pressure monitoring and regulation, providing dynamic test environment.

The results show and analyze the system monitor through the aerosol and display the test results.

Standards Compliant US CFR 42 Part 84

EU EN 143 and respirator related standards

Other national respirator regulations

Filter media testing Technical Specification Items Parameter

Apllication Load and quality control

Max Efficiency 99.999%

Aerosol Type DOP/PAO/DEHS/Paraffi/Othe rs Oil Aerosol

Aerosol Generation Atomizing

CMD 0.2μm(Oil)

GSD ＜1.6(Oil)

Flow Rate 15-100L/min

Resistance 0-150mm H2O(0-1470Pa)

Particle Detect Scatter Photometer

Measurement Time 10 Sec.

Data Report LCD, RS-232

Operation Independent tewster, automatic production line

Standard compliant US 42 CFR part 84, EN 143, JMOL, ISO 23328-1

Power Supply 115VAC, 60Hz, 10A或230VAC, 50Hz, 5A

Compressor Air 80psig, 7scfm(550kPa, 198std.

L/min)

Dimension 69cm x 71cm x 147cm(27in, x 28in.

x 58in.

)
