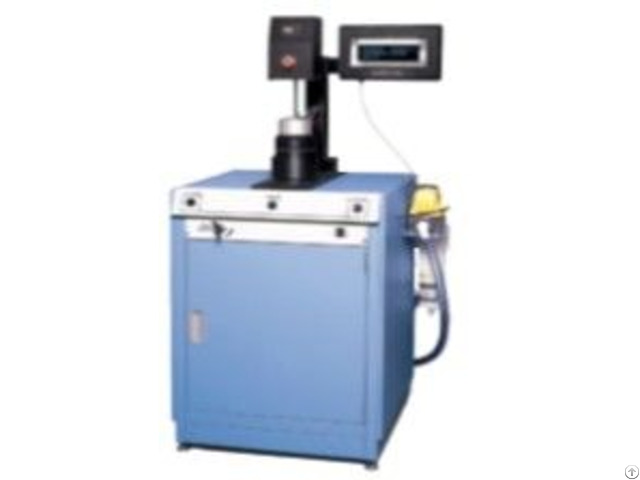

Automated Filter Tester 3120 - China

Automated Filter Tester Model 3120 meets NIOSH’s proposed Powered Air Purifying Respirator (PAPR) filter test requirements.

It is an oil-only tester that has an airflow range of 100 to 200 L/min and can measure efficiencies up to 99.999%, or penetrations as low as 0.001%.

In fact, Model 3120 uses the same proven oil-aerosol generator found in models 8127 and 8130 - Like models 8127 and 8130, Model 3120 features dual light scattering photometers that simultaneously measure upstream and downstream particle concentration to ensure fast, repeatable results.

Applications Automated filter testing Features ◆ A touch-panel display makes the Model 3120 easy to use, so very little operator training is needed.

On-screen menus enable users to easily change test parameters to meet specific requirements of different filters.

A microprocessor controls the tester and calculates and displays filter penetration, resistance value and flow rate.

Self-check diagnostics and automatic zeroing between tests ensures accurate, stable, and reproducible results.

◆ Compliance with respirator regulations

◆ Simple, fast and automated operation

◆ Service and support Components Dust removal system:

The compressed filtration air system provides a certain amount of testing dust for the aerosol generator

The test chamber:

Main test chamber and sample clamp

Monitoring and regulating system:

Pressure monitoring and adjustment provide dynamic test environment

Results display and analysis system:

Monitor through aerosol and display test results Technical Parameters

Items Parameters

Measurement Application Loading and Quality Control Tests

Maximum Efficiency 99.999%

Aerosol Type DOP/PAO/DEHS/Paraffin/oth er Oils

Aerosol Generation Atomizer

Count Median Diameter 0.2μmm (Oil)

Geometric Standard Deviation ＜1.6m(Oil)

Flow Rate 15-100L/min

Resistance 0-150mm H2O(0-1470Pa)

Particle Detection Light Scattering Photometer

Typical Test Length 10s

Data Reporting Alpha-Numeric Display, RS-232

Operation Stand Alone Tester/Automated Production Lines

Compliance US 42 CFR part 84, EN 143, JMOL, ISO 23328-1
