Astm Standard Systester Plastic Films Thickness Tester Testing Equipments - China

Application:

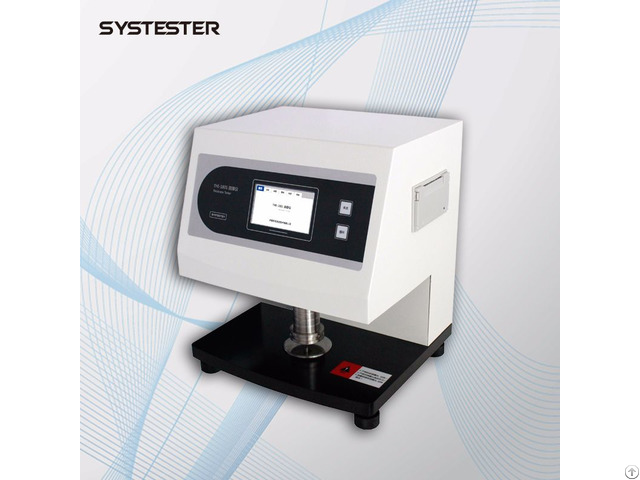

This thickness tester is based on contacting method and designed to precisely measure thickness of plastic films, aluminum foil, paper-plastic composite films, coextruded films, metal, paperboard, carbonless copying paper, siliconized release paper and many others.

Main Feature:

 Mechanical contacting test and Suitable for all kinds of materials

 High precision imported thickness sensor to ensure the testing accuracy

 Touch screen operation

 Flattening patent technology allows all operations are completed in the same interface, without entering the exit operation

 Real color TFT LCD display data and results

 Embedded system ensures remote maintenance and upgrade

 Manual, automatic and pre-appointment timing operation mode for convenient test

 Automatic bi-direction sample feeding, specimen feeding interval, number of testing points and specimen feeding speed could be preset by the user

 Displays the real-time data of maximum, minimum, average and standard deviation value for data analysis

 Built-in micro-printer automatically print single, statistical reports

 Traceable standard block calibration

 Intelligent historical data searching, comparison, analysis and printing functions

 Equipped with RS232 communication port which is convenient for data transfer

 Supports LystemTM Lab Data Sharing System for uniform and systematic management of test reports(optionals)

Technical Indexes

Test Range：0～2mm(standard)

0～6mm；0~12mm(optional )

Resolution：0.1μm

Test Speed：1~25 times/min(changeable)

Test Pressure：17.5±1kPa(fil ms)；50±1kPa(paper)

Contact Area：50mm2(films)；200 mm2(paper)

Note：Select one presser foot for films or paper; Customization is available

Specimen Feeding Interval：0.1mm~1500mm

Specimen Feeding Speed：0.1mm/s~150mm/s

Power Supply：AC 220V 50Hz

Specimen Feeding Device Dimension：287 mm (L)×180 mm (B)×210 mm (H)

Instruments Dimension: 330 mm (L)×285 mm (B)×370 mm (H)

Specimen Feeding Device Net Weight：11kg

Instruments Net Weight：38kg
