Anti Electromagnetic Radiation Performance Tester - China

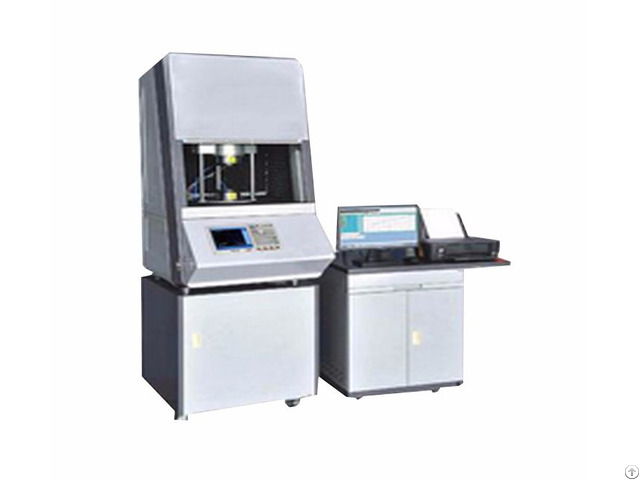

Fabric anti-electromagnetic radiation performance tester is mainly used for textile, plastic sheet, sheet metal, non-conductive material surface coating or coating, metal mesh, conductive film, conductive glass, conductive medium plate electromagnetic shielding materials such as electromagnetic shielding effectiveness test.

Standards compliant:

GB / T23326, GB / T25471, ASTM D4935, SJ2054 The main purpose:

Fabric anti-electromagnetic radiation performance tester / magnetic radiation tester / electromagnetic radiation tester is mainly used for textiles, plastic sheeting, sheet metal, non-conductive material surface coating or coating, metal mesh, conductive film, conductive glass, conductive medium plate Electromagnetic Shielding Effectiveness Test of Electromagnetic Shielding Material.

main feature:

1 - Using coaxial test method, transmission characteristics, high test accuracy;

2 - Full-frequency scanning, list scanning and point frequency measurement;

3 - Using the international preferred flange coaxial test method to measure the shielding effectiveness of materials, transmission characteristics, improve the test accuracy;

4 - Automatic control signal transmission and reception, automatic data acquisition and processing, LCD screen curve display, micro-printer print test data, easy to operate;

5 - The evaluation of the absorption and reflection properties of the electromagnetic wave is obtained by the calculation of the parameters.

6 - RS232 data interface, computer software curve display, data analysis and storage;

7 - Provide USB interface, support U disk mobile data storage.

Fabric anti-electromagnetic radiation performance tester Technical parameters:

1 - Source:

1.1 Test frequency range: 300 KHz-3000 MHz;

1.2 frequency stability: ≤ ± 5 × 10-6;

1.3 Frequency resolution: 1 Hz;

1.4 Signal purity: ≤-65dBc / Hz (partial 10 KHz);

1.5 Output level: -45dBm- + 10 dBm;

1.6 level accuracy: ≤ ± 1.5dB (25 ℃ ± 5 ℃, -45dBm- +5 dBm);

1.7 harmonic suppression ratio: ≥ 30dB (1MHz-3000MHz), ≥ 25dB (300KHz-1MHz);

1.8 Directionality: ≥ 50dB (after vector calibration);

1.9 power scan: -8dBm- +5 dBm;

1.10 System Impedance: 50 ohms.

2 - Receiver:

2.1 Frequency range: 300KHz-3000MHz;

2.2 resolution bandwidth: 100 Hz-20 KHz;

2.3 Dynamic range: ≥95 dB (RBW = 1 KHz);

2.4 Maximum input level: + 10dBm;

2.5 Input Damage Level: + 20dBm (DC + 25V);

2.6 Port: VSWR ≤ 1.2.

3 - Phase characteristics:

3.1 Phase resolution: 0.01 °

3.2 Phase trajectory noise: 0.5 ° @@ RBW = 1 kHz, 1 ° @ RBW = 3 kHz (25 ° C ± 5 ° C, 0 dBm)

4 - Send and receive frequency:

4.1 Transmitting frequency 20MHz-1.3GHz;

4.2 Transmitting frequency drift <1000Hz;

4.3 Transmit frequency Frequency hopping interval Minimum frequency hopping interval 1MHz;

4.4 Transmit output power> 13dBm;

4.5 received power dynamic range: +5 dBm - 55dBm;

4.6 Receiver power accuracy ± 1dB;

4.7 resolution 0.01dB receiver frequency test range 10MHz-3GHz;

4.8 Double-layer shielding effectiveness> 20dB.

5 - Sample size:

5.1 round: diameter 180mm-200 mm;

5.2 square: 180mm × 180mm-200mm × 200mm;

5.3 Specimen thickness: 0-5mm.

6 - Instrument specifications:

6.1 Working environment Temperature and humidity: 0-40 ℃, 0-75% RH;

6.2 Power supply: AC220V ± 30V, 50Hz 100W;

6.3 Dimensions: 70mm × 50mm × 75mm (L × W × H) (excluding computer);

6.4 Weight: about 75kg.
