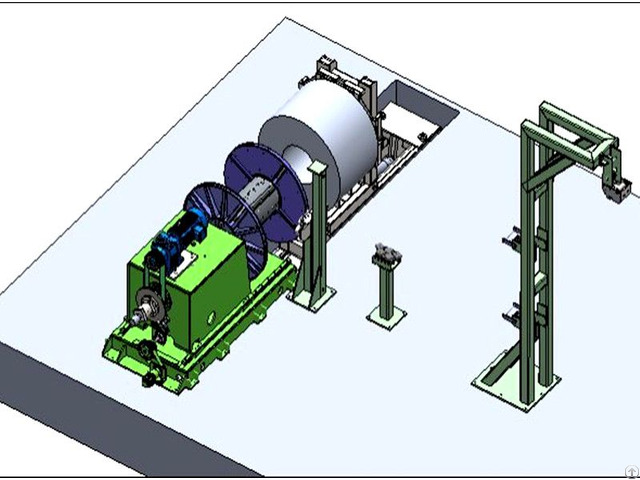

Aluminum Wire Rod Rewinding Machine - China

China Aluminum wire rod rewinding machine Korea Technology good quality 9.5mm 12mm aluminum bar Optima Aluminum Wire Rod Rewinding Machine Description

1 - Application

The equipment is used for rewinding aluminum rods with a diameter of 9.5mm and 12mm.

Winding, laying-out, package turning and other actions are intelligently controlled by PLC.

The laying-out is driven by overall movement of the servo take-up machine, ensure the aluminum rods after the coiling are arranged orderly, reduce the volume so that easy to transport and store.

2 - Equipment list

2.1 Paying-off supporter: 1set

2.2 Horizontal straightening machine: 1 set

2.3 Vertical straightening machine: 1 set

2.4 Taking-up: 1set

2.5 Package turning: 1set

2.6 Electrical cabinet: 1set 3 - Main technical parameters

3.1 Expansion and contraction core (outer diameter * inner diameter * width): Φ 1400*560*900mm

3.2 Take-up speed: 200m/min

3.3 Take-up diameter: 9.5mm, 12mm

3.4 Form of laying-out: overall movement of the servo take-up machine

3.5 Bearing weight: 3000kg

3.6 Max.

Dia.

of expansion and contraction: Φ560mm

3.7 Min.

Dia.

of expansion and contraction: Φ530mm

3.8 Take-up power: 15kW Frequency Motor

3.9 Laying-out power: 2kw Servo Motor

3.10 Hydraulic station power: 2.2kw

3.11 Equipped with fixed length parking device
