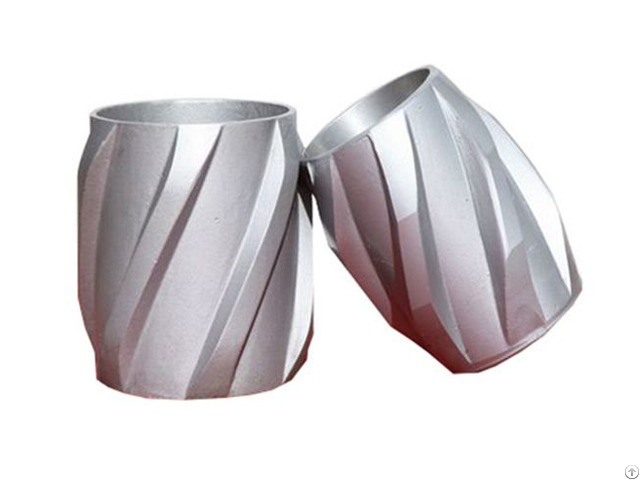

Aluminum Spiral Vane Solid Rigid Centralizer

Aluminum Spiral Solid Casing Centralizers were developed in response to the need for better cementing in deviated and horizontal wells.

The unique design ensures optimal flow area and is strong and resistant to impact, These Casing Centralizers are also able to withstand high well bore temperature while providing maximum horizontal standoff.

Solid vane straight blade centralizers are designed to providea fixed casing standoff, regardless of lateral load.

This positive standoff helps ensure even distribution of cement around the well casing.

The spiral centralizer with a 360 overlapping solid vane to provide maximum wellbore contact and maximum wellbore fluid swirl.

This centralizer is recommended to be used on shoe joints, through production zones, liner overlaps, and other areas where a good cement bond is essential.

The recommended spacing through productive zones is every 20 ft, using the left- and right-hand spiral design in every other sequence.

Zhongshi manufacture casing centralizer, float equipment, cementing head, cementing plug and stage collar etc.

We have 19 years manufacturing experience of petroleum machinery products till now.

Company Contact:

• Posted By: Puyang Zhongshi Group Co., Ltd.

• Phone: 86 022 23456997

• Address: Mazhuangqiao Industry Zone, Puyang, Henan, China, Henan , China

• Email:

• Website: https://www.cementingtool.com/

• Business Description: Puyang Zhongshi Group Co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC .

  The company registered capital is 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff .

  Oil machinery is our main products, the leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling solid control series products and cementing accessories, such as Casing Centralizer, Cementing Basket, Float Equipment and so on.

  We had attained ISO 9001 in 1998 and API Certificates in 2002 .

  We always insist on the implementation of “consolidating the Central Plains, reaching out to the world”, at the same time expanding domestic and overseas markets.

  For decades, our products are not only on admission Central Plains, Daqing, Shengli, Nanyang, Yanchang, Changqing, Karamay and other domestic major oil fields and coal-bed methane areas, but also are exported to Southeast Asia, Northern Europe, the Middle East, Africa and South America market.

  We have successively established long-term strategic cooperative relations with the oilfield market customers of Sudan, Russia, Kazakhstan, Indonesia, Iran, Syria, Venezuela and other countries .

  We would like to faithfully cooperate with friends from all circles with classic products and service to achieve common development .
