Aluminum Foil Container Making Machine Seac 63as From Silverengineer - China

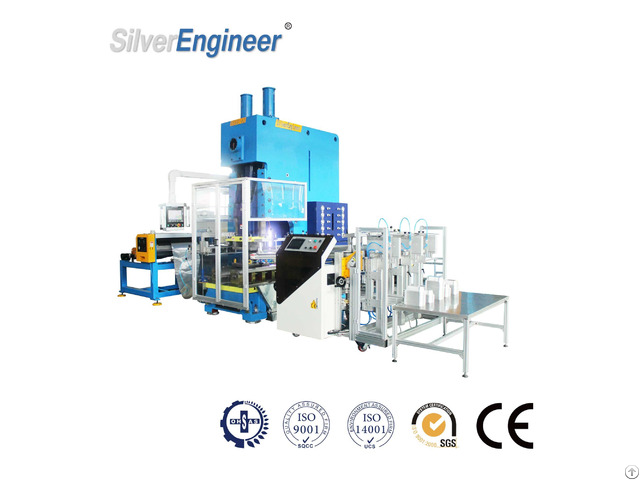

Complete Automatic Aluminum Foil Container Making Machine Line Model: SEAC-63A-4 : Max.

Mould Lenght 1150mm Units: Automatic Feeder+Automatic 63Ton Press+Cavities Mould+Auto Stacker+Scrap Sucker& Presser.

It fit for all common size Aluminum Foil Container production requested.

The Big capacity could to cover big range of size products.

Lower power requested than other old model machines.

Specification:

1 - Raw material: Aluminum foil; Thickness: 0.030mm~0.250mm; Alloy: 8011, 8006, 3003, 3005 etc.

;

2 - Japan Inverter, PLC and 10inch touch screen control system;

3 - Max.

Width of Aluminum foil: 880mm; 4 - Max.

Diameter of Aluminum foil: 1000mm;

5 - Core diameter of Aluminum foil: 76/152mm;

6 - Working speed: 40-75 times/min;

7 - Total Power: 11kw+2kw+2kw+1kw; 4Motor

8 - Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;

9 - Install dimension: 7100*2600*3500mm; Technical Data:

Max.

Mould Size: 1100*900*450mm;

Slide block stroke: 180-260mm;

Slide block dimension: 380*145mm;

Automatic mould height adjust unit: 0.5kw;

Work plate dimension: 1100*200*300mm, separated two sets with Balls;

Tension: complete automatic adjust;

Feeding System: Servo Motor, higher precision and more power;

Auto Stacker: SMC lift for stacking system, top quality;

Power: 4P, 380V or 220V, 50Hz /60Hz;

Net weight: 9, 500kg.

SE have the model: 55Ton, 63Ton, 80ton, 110ton, Common Feeder and Embossing Feeder, Common Conveyor and Auto Stacker for your option.

SEAC-63 is the perfect model to produce food packing containers.

The container's quality accord to the International Environment Protect Standard.

The Embossing Feeder is a nice design, it's a amphibious feeder, it could embossing the foil together feeding; And you can use it only to feeding foil, only need to adjust the emboss unit, so easy!

Auto Stacker will help you upgrade company capacity level and save labour cost!
