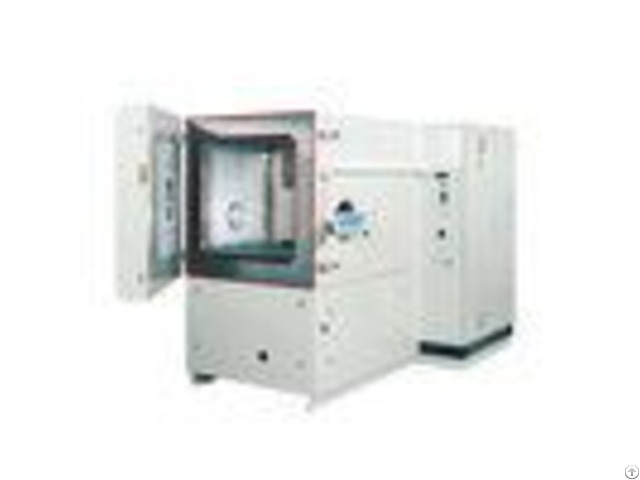

Altitude Temperature Test Chamber - China

Application

JOEO® Altitude Temperature Humidity Chamber for Electrical, electronic, military industry and household products.

JOEO® Design team according to GB, GJB and IEC standard, to do Low pressure altitude testing chamber high low temperature, humidity thermal, low pressure and other environmental and reliability test.

General introduction: JOEO® Altitude Temperature Test Chamber is composed of test room formed by pressure-containing box shell and insulation structure, refrigeration system, add wet system, vacuum system and electric control system and other components.

Details of Altitude Temperature Test Chamber :

Meets international standards DO160, ASTM, MIL-STD-781, -810

Altitude up-to 150, 000 feet

Temperature range -70°C to +180°C, Humidity range 20 to 95% Feature

Altitude Temperature Test Chamber Testing of avionics or other aerospace equipment to simulate actual conditions it might experience.

Simulation of high-altitude conditions like might be found in mountainous regions.

Applicable test method (depending on chamber system specified)

Mil-Std 202G (conditions 105C, A/B/C/F)

Mil-Std 810G (condition 500.5)

IEC 60068-2-39

IEC 60068-2-40

RTCA/DO-160F

JIS W 0812

JOEO® Test Chamber Standard Satisfied:

GB/T2423.1-2001 test A: Low temperature test

GB/T2423.2-2001 test B: High temperature test

GB/T2423.21-2001 test M: Low pressure test

NOTE: Altitude Temperature Test Chamber are custom systems, and differing requirements may significantly change the cost and utility requirements.

Please let ESPEC know as much detail as possible about your anticipated testing specification/method, and we can provide you with a tailored system for your requirements.

Structure

Altitude Temperature Test Chamber JOEO® factory is designed to allow users to perform temperature, humidity, and altitude condition tests in a combined test chamber, and create multiple conditions to meet multiple test requirements at the same time.

Altitude chambers designed to simulate altitude conditions up to 100, 000 feet.

Provides simultaneous temperature/altitude testing from site altitude to 65, 000 feet for high altitude test chamber testing.

Humidity test can only be performed at the altitude of the site.

Heated inspection window to ensure that the test room is clearly visible.

JOEO® Altitude Temperature Test Chamber Main box structure internal pressure structure

JOEO® Altitude chamber Control system of Altitude Temperature Test Chamber : fan, heater, evaporator, h umidifier

Refrigeration mode: mechanical compression binary refrigeration system

Vacuum units: rotary vane vacuum pump

Control panel: temperature, humidity and pressure controlled display screen, over temperature

protection device, light switch
