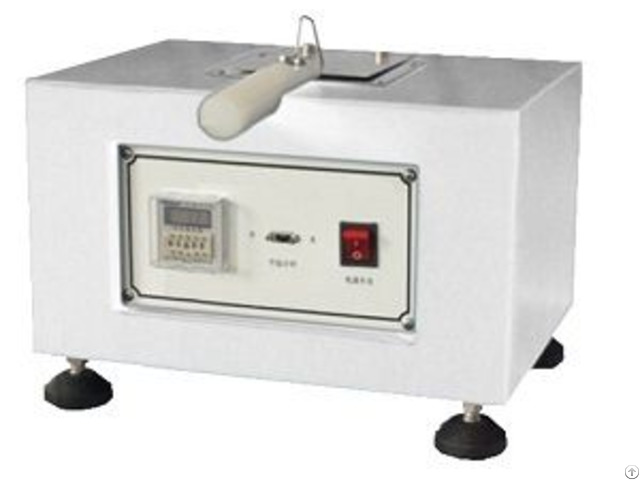

Acid Penetration Tester - China

Protective clothing against acid test system is the main inspecting device for application LA safety mark and industrial product production license for acid proof protective clothing.

The device divides to static acid pressure tester, acid and alkali repellant tester, and acid penetration time tester.

Acid penetration tester is mainly used for measuring the penetration time of acid and alkali proof chemical fabrics.

Application Acid penetration tester is used for water proof air permeability testing of high density fabric, laminated fabric, and coating material etc.

Such as canvas, such as canvas, felt, tarpaulin, cover cloth, airtight fabric, outdoor sports material, umbrella testing and waterproof material testing etc.

It can be also used for testing liquid and blood permeability testing of medical protective clothing, and chemical material liquid permeability testing of chemical protective clothing, liquid permeability testing of non-woven, filter material, it can be also used for water permeability testing of paper and card board .

Standard Acid penetration tester is used for water proof air permeability testing of high density fabric, laminated fabric, and coating material etc.

Such as canvas, such as canvas, felt, tarpaulin, cover cloth, airtight fabric, outdoor sports material, umbrella testing and waterproof material testing etc.

It can be also used for testing liquid and blood permeability testing of medical protective clothing, and chemical material liquid permeability testing of chemical protective clothing, liquid permeability testing of non-woven, filter material, it can be also used for water permeability testing of paper and card board .

Standard GB 24540-2009《protective clothing against liquid acids and alkalis 》Appendix D

ISO 6529-2013 Protective clothing-protection against chemicals-determination of resistance of protective clothing materials to permeation by liquids and gases.

BS EN 463-1995 Protective clothing-protection against liquid chemicals- Test method determination of resistance to penetration by a jet of liquid (Jet test)

BS EN 468-1995 Protective clothing– protection against liquid chemicals, performance requirements for chemical protective clothing with spray-tight connections between different parts of the clothing( type 4 equipment) Technical Parameters

Item Parameters

Specimen size 100mm*100mm

Solution 0.1mL(conductive method)or 10mm height(indicator method )self provide 50mL beaker

Testing condition Temperature：17-30℃, Relative humidity: (65±2)%RH

Timing 0-99.99s

Accuracy ±0.01s

Max acid pressure Above 150mm H2SO4 (80%)

Acid pressure rise rate 60±0.5cm H2SO4/min

Measuring range 0-150mm H2SO4 (80%)
