1kg 3kg 5kg 8kg Platinum Melting Furnace - China

1kg 3kg 5kg 8kg Platinum Melting Furnace

Hajet Tilting type Platinum Smelter are built with the latest solid-state technology with the IGBT Mould From Germany.

The furnaces are available with power supplies from high frequency to medium frequency and ranging from 10kW to 25kW as per customer's requirement.

Our melting furnace system are available for material of Gold, Silver, Copper, Bronze and Aluminum using Graphite crucible or SIC crucibles, what's more, Hajet Pt Smelter can be set up for melting ferrous metals as well.

Hajet Tilting type melting furnace system can be equipped with optional Thermocouples or Infrared pyrometers for accurate temperature control of the materials being heating and melted.

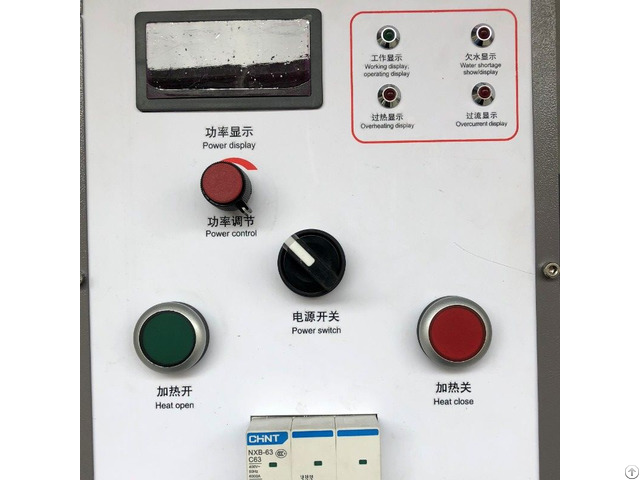

or Can be add the Plc Control System to make the operation more advanced and convenient.

Water Cooling Pump is designed inside the machine.

Customers could also order our water chiller as cooling system to save water.

These induction furnaces are ideal for melting metals such as: Steel, Iron, Copper, Brass, Gold, Platinum, Silver, Nickel, Palladium, and other alloys.

Platinum Melting Furnace Model No: HJ-1117A HJ-1117B HJ-1117C HJ-1117D

Power Supply 380V, 50/60Hz, 3 phase 380V, 50/60Hz, 3 phase 380V, 50/60Hz, 3 phase 380V, 50/60Hz, 3 phase

Output Power 12KW 15KW 16KW 20KW

Capacity (Pt) 1kg 3kg 5kg 8kg

Melting Time 2-4 minutes 2-4 minutes 2-4 minutes 3-5 minutes

Size 40x60x130cm 40x60x130cm 40x60x130cm 40x60x130cm

Weight 93kg 93kg 94kg 95kg
