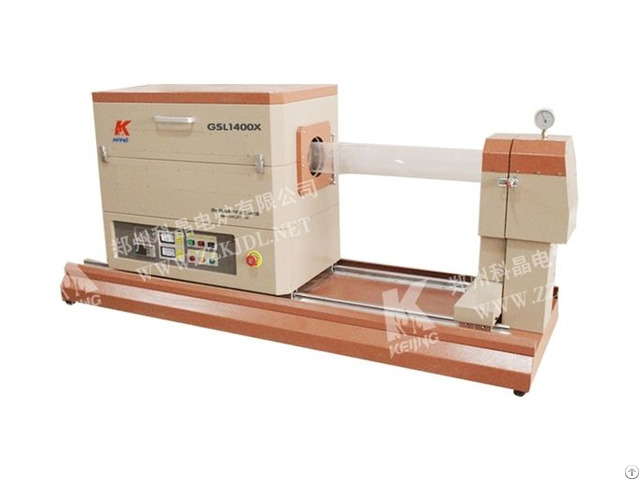

1400 Degrees C Slide Able Heating Cooling Tube Furnace - China
price: contact company for price
Slide-able tube furnace with 3"IDx55" L quartz tube and flanges and a maximum working temperature up to 1350°C.
One pair of sliding rail is installed on bottom of furnace to allow sliding the furnace from one side to another to achieve max.
heating and cooling rates up to 100°C/min.
For fastest heating, the furnace may be pre-heated to a desired temperature and then be slided to the sample's position.
As for fastest cooling, the furnace can be slided to another side after sample heating is completed.
Moreover, the heating and cooling rates may reach 15°C/s under vacuum or inert gases.
This furnace provides an alternative for rapid thermal processing at the lowest cost.
Double layer steel structure with dual air cooling fans
One pair of sliding rails are installed on bottom of furnace, which allows furnace to be manually moved from side to side
Vacuum flanges and a digital vacuum gauge are installed for immediate use.
Slding rail length is about 1200mm, the furnace can slide 600 mm distance.
Company Contact:
- Posted By: HENAN SYNTHE CORPORATION
- Phone: 86-371 6939 2107
- Address: No. 12 Shangwu Waihuan Road, Zhengzhou, China, Zhengzhou , Henan , China
- Email:
- Website: http://www.syn-thermal.com
Published date: November 28, 2016
- Business Description: Henan Synthe Corporation Focuses on the manufacture of the high temperature furnace and relevant refractory materials, offers a series of tube furnace and box furnace.
These furnaces also offer atmosphere and vacuum control, specializing in high temperature function, including high temperature box and tube furnaces ranging from small laboratory furnaces to large production scale kilns.
We also offer furnace spare parts, such as complete SiC and MoSi2 heating elements, Alumina crucibles, ceramic fibre products.
