Tig Mig Arc Welding Robotic Arm - China

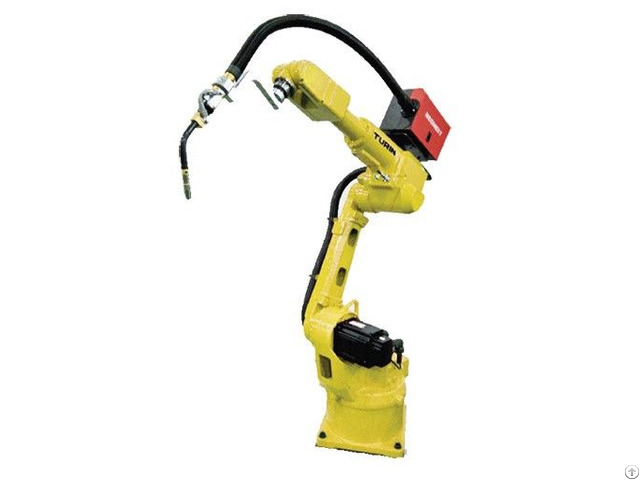

6 AXIS TIG MIG Arc Welding Robotic Arm

One of our company's highest-selling models of a classically designed welding robot, with an arm span of 1441mm, has good stability and easy maintenance.

Highly flexible cables, as well as waterproof, fireproof and dustproof cable protective sleeves, American GATES transmission belts, NABTESCO lubricant, and other high-quality materials are used.

After 7 years of market verification and continuous optimization of machinery, circuits, and wiring designs, the stability and cost performance are very high.

It can be widely matched with domestic and international well-known brand welding machines.

The configuration supports purely domestic configurations, or adopts imported reducer configurations of NABTESCO, SHIMPO and so on.

It can meet customer needs in many fields.

Real-time computer control of the robot can be achieved based on Enthernet TCP / IP.

It supports offline programming track generation, and it can greatly reduce the teaching programming time.

Features

The robotic arm span is 1441mm 6kg Payload.

It can be installed on the ground or upside down flexibly.

With large working space and fast running speed, our industrial robots are ideal for welding, spraying, machine tool loading and unloading, handling, sorting, assembling and other applications.

Industrial Robots Factory: SOT TECH CO., LTD

Use Italian design technology in mechanical and circuit, and take in ABB wiring layout technology in our robot body manufacturing.

Use modular design to simplify wiring, double safety circuit design, and dust protection design for electricity cabinet.

Support single phase.

220V working voltage can be better adapted in various environments.

The robot body is with dual-circuit gas pipe and meets the welding and handling requirements.

Programmable robot body cables are made of special cables for flexible robots.

Built-in three-phase transformer, 380V and 200V isolation, more stable power supply.

Power supply requirements can be customized for different countries.

The built-in three-phase filter can effectively improve the performance of EMC and EMI.

More information go website

The robot body is with dual-circuit gas pipe and meets the welding and handling requirements.

Traditional but the most mature external type welding torch desgin.

6+3 Axis (Standard 6 Axis, External Axis Optional).

Support External PLC, arc tracking and accessories (selection), visual software (selection), laser tracking software (selection), arc tracking software (selection), etc.

Support Chinese/English/Japanese/ Polish.

Welding Procedure:

Gradient welding, collaborative welding, fish scale welding, touch sense welding, arc tracking, laser tracking, laser fixed-point tracking, multi-layer multi-channel, Mig Welding, TIG welding, MAG welding, C02 welding, starting point seeking, whole part seeking, welding process package, anti-collision detection, fly arc starting, drawing back, restarting, linear/arc coordination.

SOT TECH CO., LTD is the official representative of TURIN Robot company in overseas market and all overseas business issues of TURIN Robots will be handled by SOT Robotics.

TURIN is a high-tech enterprise, focusing on welding robots, small 6 axis robots for handling, and high precision SCARA robots for pick and place applications.
