Phonefix Tx001 Soldering Iron Usb Charging Mini Welding Pen - China

Phonefix TX001 soldering iron USB charging mini welding pen for PCB motherboard CPU IC solder wire repair.

Best handheld electric welding tool TX001 mini soldering iron for professionals and amateurs.

Portable Phonefix TX001 electronic soldering iron USB Type-c charging welding tool.

TX001 Portable Jump Wire Soldering Iron Replaceable JBC T210 Welding Iron Tip for Mobile Phone PCB Soldering Repair, heating up quickly, 2 seconds up to 380 degrees.

quick cooling, automatic sleep, QC Quick Charging Adapter, replacing damaged or unusable iPhone motherboard repair.

Option:

Package A: basic version, TX001 soldering Iron+C210 Knife Tip.

Package B: entry-level version, TX001 Soldering Iron+C210 Knife Tip+66W QC Adapter+USB Cable.

Package C: professional version, TX001 soldering Iron +3Pcs C210 Tips (Straight, Knife, Curved)+66W QC Adapter+USB Cable.

Package D: TX001 soldering Iron +1Pcs C210 Tip (Knife)+66W QC Adapter+USB Cable.

C210 Soldering Iron Tip: Straight Tip, Knife-shape Tip, Curved Tip.

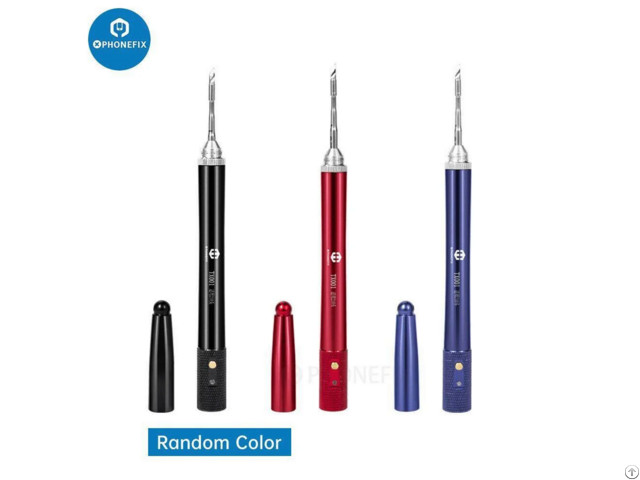

Soldering Handle Color: Red, Blue, Black (Random Color) Features:

1 - Small size, easy to carry and use, suitable for soldering jump wire/solder wire on the motherboard.

2 - Heating up quickly, 2 seconds up to 380 degrees.

Quick cooling, automatic sleep, wake up with a touch, 3-gear adjustable temperature.

3 - TYPE-C power supply interface, and charge with power bank or other USB power supply.

Voltage 5V-12V, current 1A-5.9A is available! TX001 Portable Jump Wire soldering iron Specification:

Model: Portable Jump Wire Soldering Iron TX001.

Voltage: 5-12V.

Current: 1-5.9A.

Temperature: 0-450 degrees (350-400-450 degrees adjustable).

Manufacturer: CHINA PHONEFIX - Huimintong.

Origin: Shenzhen, China.

Features: compact, portable, fast heating-up, quick cooling, automatic sleep, adjustable temperature.

USB 210 Soldering Iron Features:

1 - Three levels of temperature adjustable(350-400-450 degrees).

2 - With status light.

3 - Support QC protocol, charging head automatic voltage boost

4 - Type-c sockets in a gold-plated process, high current does not generate heat.

5 - The heating core clamping shrapnel adopts the same material as the JBC handle.

6 - Standard 66W quick charger with QC agreement.

7 - Lightweight handle, metal button, one key switch.

Working Mode:

1 - One key switching, three levels of temperature adjustable.

2 - Green light mode 350℃, blue light mode 400℃, red light mode 450℃, yellow light is at sleep mode.

3 - The green, blue and red light stays on shows it's heating.

4 - Flashing green-blue-red light indicates that the temperature has reached the set value.

Notes:

1 - Using a non-standard charger or without a QC protocol may affect the heating speed!

2 - Using a non-standard soldering tip can cause temperature inaccuracies!

3 - Slow heating up or irregular light flashing means that the charger does not have a QC protocol and the voltage does not rise to 12v!

4 - When installing the soldering iron tip, please pull out the USB cable and insert the soldering iron tip from the top down on the table top.

5 - The portable soldering iron can not replace the soldering station! Only suitable for on-site maintenance, soldering jump wire, small bonding pad.

Troubleshooting Methods:

1 - If the white light is displayed all the time, it means that the soldering iron tip is broken or not inserted into place!

2 - If the light is not on and does not heat up when plug in the charging cable, you need unplug the soldering iron tip to observe.

3 - If the light is on and there's no color, that means the charger power is too low.

If the light is not on, please replace the charger or charging cable.

Warranty Agreement:

1 - The handle and charger of this product are warranted for one year, and there is no warranty on the heating core.

2 - Please use the matching charger and heating core.

3 - There is no warranty if the product is damaged by using the heating core of other factories.
