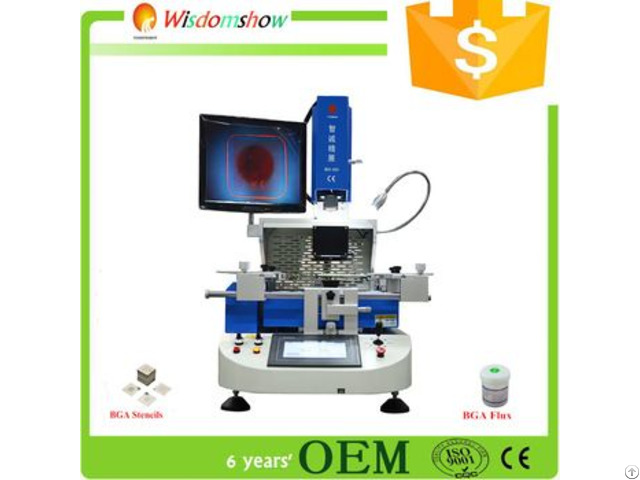

No 1 Sales Wds 620 Automatic Mobile Phone Ic Chip Repair Machine Auto Bga Rework Devices - China

1 - Auto Solder and Desolder the bga chips Easy to operate

2 - High precision optical alignment systemRework Success Rate 100%

3 - High definition industrial Camera + Laser position + 15 inch LCD Monitor (**We can add a side camera to view the chips melting process, just as your request**)Flexible to adjust the machine design

4 - Heating Zone (IR Area) is good for Laptop, Mobile Phone, PS2/3/4 XBOX360, Ipad/Iphone, PCB Board, don't damaged the boardWide application

*Independent 3 heating zones temperature control system

1 - The upper and lower hot air heating, which can heat up at the same time from the top of he component to the bottom of the PCB;bottom IR heating, temperature precision control within ±1degree.

8 segment temperature control independently.

auto BGA rework devices

2 - Hot air district heating for BGA and PCB at the same time, and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking, the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

optical alignment bga soldering station typeauto BGA rework devices

3 - Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system; auto BGA rework devices

4 - temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface, curves can be analysed, set and correct on the touch screen at any time.

*Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system, beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment, adjustable image contrast;equipped with 15 " high definition LCD monitor.

*Multi-functional and humanized operation system

1 - Adopting the HD touch human-machine interface;upper heating head and mounting head designed

2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2 - X, Y and R angle adopted micrometer fine-tuning, accuracy locating, precision can reach ±0.01mm.

*Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.

In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.

Temperature parameter having password protection to prevent any modification.

Technical Parameter:

Automatic BGA rework soldering machine: Yes

Power supply: AC 220V±10% 50/60Hz

Total power: Max 4800W

Heater power: Upper temp.

zone 800W, second temp.

zone 1200W, IR temp.

zone 2700W

Electrical material : Driving motor+PLC smart temp.

controller+color touch screen

Temperature controlling: (high precision K-sensor)(Closed Loop), independent temp.

controller, the precision can reach ±1degree

Locating way: V shape slot, PCB support jigs can adjust, laser light do fast centering and position

PCB size: Max 400×390mm Min 10×10 mm

Applicable chips: Max 80×80mm Min 1×1 mm

Overall dimension: L650×W630×H85 0mm

Temperature Interface: 1 pcs

Weight of machine: 60KG

Color : Blue & White

ways can we chose?

The specific time according different shipping ways you chose.

By DHL, Fedex, UPS, etc (Door to Door Service), about 3-7 days to arrive

By Air to your airport (Door to Airport Service ), about 3-5 days to arrive.

By Sea to the seaport, about 30 days to arrive.

2 - How about the package ? Is it safe during the delivery ?

All BGA rework machine is packed by standard strong wooden box with foam inside.

It can guarantee the safety of shipping.

3 - Can you provide the warranty ? How about the after sales service ?

We have professional after sales team, supply 1 year warranty free for spare parts and whole life technical support.

if any question, contact us in any time.

4 - This machine is easy to operate? Do you provide the user manual to help me ?

Yes, we will provide the English user manual and can change the language as your requirement.

The machine is humanized designed, do not worry, it is easy to operate.

5 - What is the payment way ?

We accept the payment terms: Bank transfer, Wester Union, , Paypal, Alibaba Pay, Aliexpress Pay, Credit Card etc.

Any other questions, Pls send INQUIRY , or CHAT with us, we will try our best to help you.
